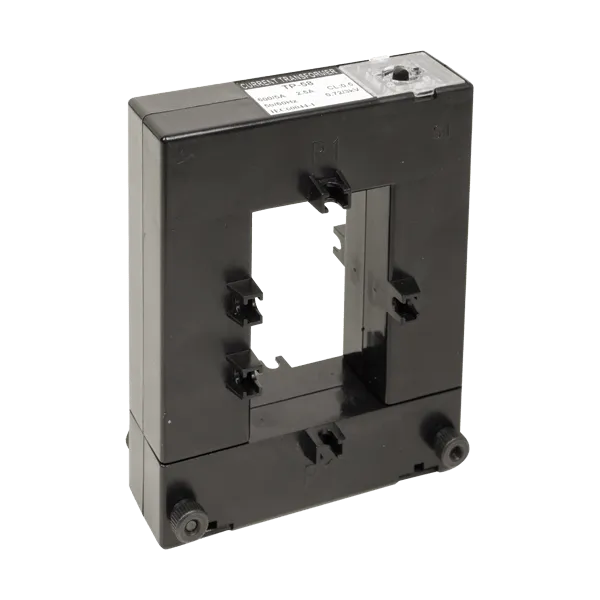

CURRENT MEASUREMENT TRANSFORMERS CP 23, 250/5, class 1

CURRENT MEASUREMENT TRANSFORMERS CP 23, 250/5, class 1

Elmark
€69.56 Tax included
Delivery 7-14 days
Technical characteristics: - Maximum operating voltage: 720V,50Hz - Acceptable deviation of the operating current: 1.2 Ñ… In - Input current: 200-1000А - Output current: 5А - Precision class: 0.5; 1 - Safety coefficient: fs ≤5 - Rated load: up to 30VA - Secondary coil connection: shoe...
Reference
3800131137258
Available (5 Items)
Read reviews (0)

Free shipping

In Estonia from 75 € of purchases

Secure payment

100% secure online payment

Easy returns

Returns possible for 14 days

Customer service

24/7 WhatsApp

Technical characteristics:
- Maximum operating voltage: 720V,50Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 200-1000А
- Output current: 5А
- Precision class: 0.5; 1
- Safety coefficient: fs ≤5
- Rated load: up to 30VA
- Secondary coil connection: shoe terminal

\n


Standard: EN60044-1

Data sheet

Brand
ELMARK
Category
E1
Total power W
1
Total power W
5VA
Product net weight kg
0.710
Weight Gross kg
0.733
Warranty
3+2
Weight Net kg
0.710
Power
1.5VA
Weight
0.733
