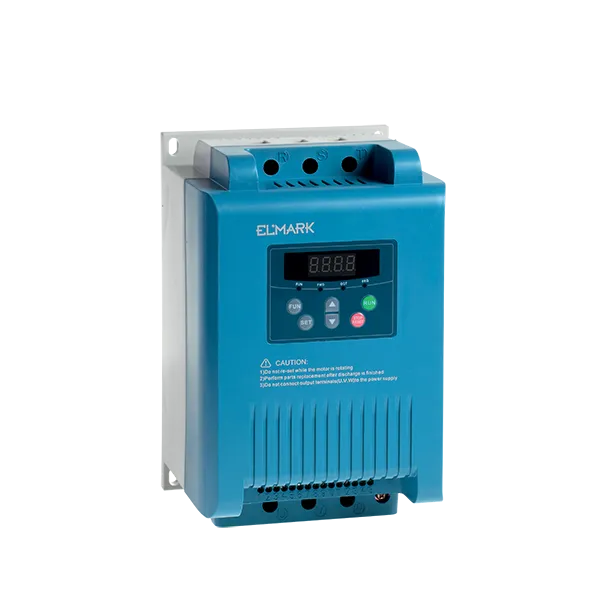

SOFT STARTER ELM-2500 15KW 30A

Technical characteristics:
- Rated operating voltage: 230/400V АС;50Hz
- Rated current: 30-150А
- Acceptable operating voltage deviation: ±10%
- Unbalance of phases: <3%
- Frequency fluctuation: <5%
- Obligatory bypass contactor installation
- Plastic: UV-rays resistant and fire resistant (self-extinguishing material)
- Maximum altitude: 2000m

\n

Functions:
- System functions:
= Over-voltage protection - motor will switch off when power supply
exceeds the preset limits
= Overload protection - protects the motor from overloading
= Phase loss protection
= Temperature overload protection
- Control functions:
= Output falts
= Motor faults diagnostics
= Keyboard or outward control
= Delayed start option
= Faults memory

\n

Mounting:
- To a flat surface using bolts
- Mounting position – vertical with maximum gradient up to ± 5º
When more than one inverter is mounted in a board, it is recommendable to mount them next
to each other, and when this is not possible, proper cooling of devices should be provided

Standards: EN60947-4-2; EN60947-1; LVD; EMC
