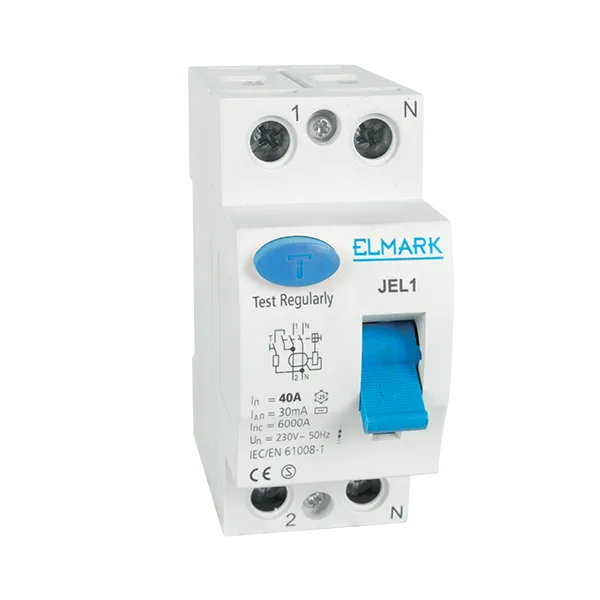

RESIDUAL CURRENT DEVICE JEL1 2P 20A/30MA

Elmark
€44.03 Tax included
Delivery 7-14 days
\n Technical characteristics: - Rated current: 10-100 А - Rated operating voltage: 230/400V; 50/60Hz - Rated residual current: 30/100/300/500 mA - Number of poles: 2/4 - Surge voltage wear resistance: ≥2000V - Short circuit current wear resistance: 6000А - IP code: IP>20 - Ambient temperature:...
Reference
3800131122964
Available (4805 Items)
Read reviews (0)

Free shipping

In Estonia from 75 € of purchases

Secure payment

100% secure online payment

Easy returns

Returns possible for 14 days

Customer service

24/7 WhatsApp

\n

Technical characteristics:
- Rated current: 10-100 А
- Rated operating voltage: 230/400V; 50/60Hz
- Rated residual current: 30/100/300/500 mA
- Number of poles: 2/4
- Surge voltage wear resistance: ≥2000V
- Short circuit current wear resistance: 6000А
- IP code: IP>20
- Ambient temperature: -10°÷65ºÐ¡
- Installation altitude: up to 2000m

\n

Mounting: Vertical on a DIN rail

\n

Standards: EN 61008-1; EN 61008-2; EN 60947-1

Data sheet

Brand
ELMARK
Category
АС
Dimension
L:72/W:35/H:81
Product net weight kg
0.250
Weight Gross kg
0.267
Warranty
7+0
Weight Net kg
0.250
Dimensions (mm)
L:72/W:35/H:81
Weight
0.267
