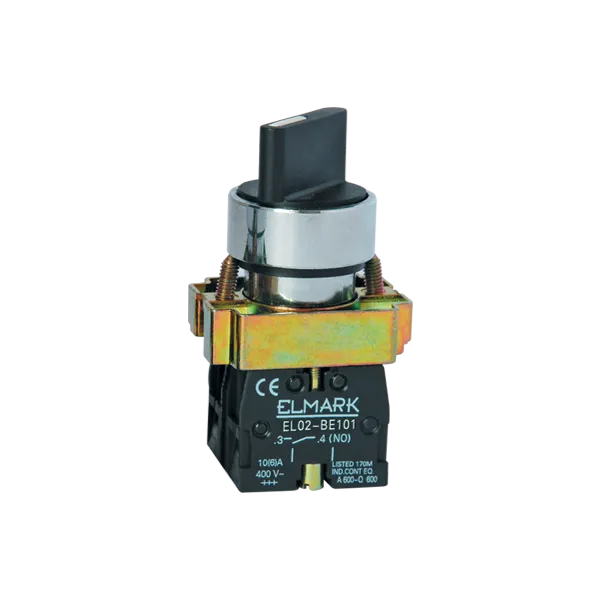

SWITCH WITH ARREST BD 33 2NO 3 POSITIONS BLACK

Elmark
€9.83 Tax included
Delivery 7-14 days
Technical characteristics: - Insulation voltage: 660V;50/60Hz - Surge volatge wear resistance: 6000V - Rated current: 6А(230V АС); 0.3А(230V DC) - IP code: IP20 - Short circuit protection: breaker 10А gG outside of the circuit - Mechanical wear resistance: 1х106 commutation cycles - Operating...
Reference
3800131101501
Available (3016 Items)
Read reviews (0)

Free shipping

In Estonia from 75 € of purchases

Secure payment

100% secure online payment

Easy returns

Returns possible for 14 days

Customer service

24/7 WhatsApp

Technical characteristics:
- Insulation voltage: 660V;50/60Hz
- Surge volatge wear resistance: 6000V
- Rated current: 6А(230V АС); 0.3А(230V DC)
- IP code: IP20
- Short circuit protection: breaker 10А gG outside of the circuit
- Mechanical wear resistance: 1Ñ…106 commutation cycles
- Operating temperature: -20° to 70°Ð¡
- Humidity: 35-85%RH
- Connecting wires torque: 0.15 Nm
- Section of the conductor: 1Ñ…0.5; 1Ñ…0.75; 1Ñ…1; 1Ñ…1.5; 1Ñ…2.5mm2

\n


Mounting:
- To a flat metal or plastic surface with thickness: max 4m
- Size of the opening: Ø22.5mm

\n

Standards: EN60947-1; EN60947-5-1

Data sheet

Brand
ELMARK
Category
E1
Product net weight kg
0.070
Weight Gross kg
0.080
Warranty
3+2
Weight Net kg
0.070
Weight
0.080
