49,60 €

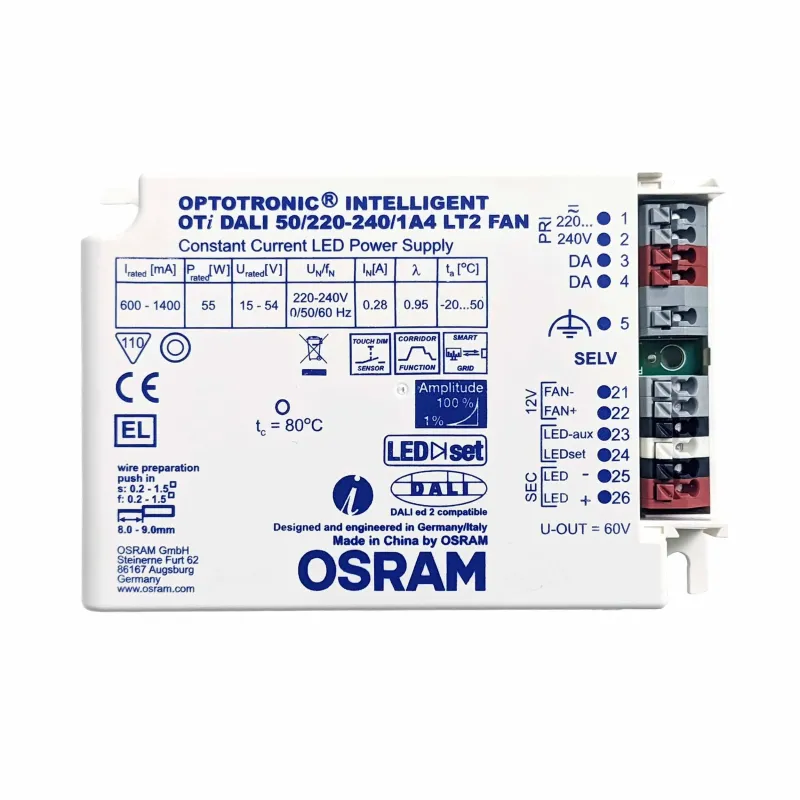

OTi DALI 50/220-240/14A LT2 FAN Osram Optotronic Intelligent
Osram
14,21 €
Su mokesčiais
Pristatymas per 1–2 dienas
Additional information
Weight: 0.18 kg
Dimensions: 11.0 × 7.5 × 2.5 cm
Nominal input voltage: 220…240 V
Mains frequency: 0/50/60 Hz
Input voltage AC: 198/264 V
Input voltage DC: 176/276 V
Total harmonic distortion: < 10 %
Power factor λ: > 0.95
Efficiency in full-load: 91 %
Device power loss: 7.5...
Additional information
- Weight: 0.18 kg
- Dimensions: 11.0 × 7.5 × 2.5 cm
- Nominal input voltage: 220…240 V
- Mains frequency: 0/50/60 Hz
- Input voltage AC: 198/264 V
- Input voltage DC: 176/276 V
- Total harmonic distortion: < 10 %
- Power factor λ: > 0.95
- Efficiency in full-load: 91 %
- Device power loss: 7.5 W
- Inrush current: 30 A
- Max. ECG no. on circuit breaker 10 A (B): 12
- Max. ECG no. on circuit breaker 16 A (B): 20
- Surge capability (L/N-Ground): 2 kV
- Surge capability (L-N): 1 kV
- Nominal output voltage: 15/54 V
- U-OUT (working voltage): 60 V
- Nominal output current: 600/1400 mA
- Output current LEDset open: 300 mA
- Output current LEDset shorted: 1050 mA
- Default output current: 1050 mA
- Output current tolerance: ±3 %
- Output PSTLM: ≤1
- Output SVM: ≤0.4
- Nominal output power: 55 W
- Maximum output power: 55 W
- Galvanic isolation primary/secondary: SELV
- Galvanic isolation DALI/mains: Basic
- Galvanic isolation DALI/output: SELV
- Casing material: Plastic
- ECG lifetime: 50000 / 100000 h
