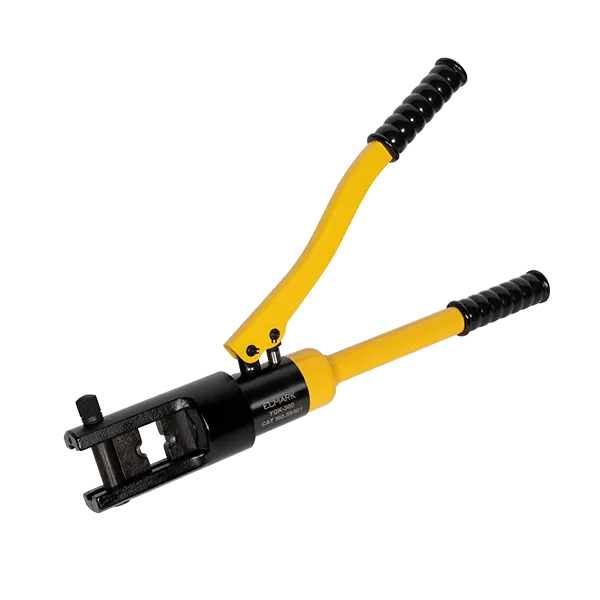

UŽSPAUDIMO REPLĖS YQK-300
Elmark
210,14 €
Su mokesčiais
Technical characteristics:
- Widht of the element: 22mm
- Shape of the crimping element: hexahedral
- Size of the crimping element: 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
- Section of the crimped conductors:
= Al conductors: from 10 to 300mm2
= Cu conductors: from 10 to 240mm2
-...
Technical characteristics:
- Widht of the element: 22mm
- Shape of the crimping element: hexahedral
- Size of the crimping element: 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
- Section of the crimped conductors:
= Al conductors: from 10 to 300mm2
= Cu conductors: from 10 to 240mm2
- Pressing strength: 100kN
- Lenght: 500mm
\n
Functions:
- Crimping of aluminum or copper conductors with cable terminals or bush in the corresponding size
\n
Advantages:
- Metal box for the instrument
- A set of congestion hoops for the hydraulic cylinder
Duomenų lapas
- Prekinis ženklas
- ELMARK
- Kategorija
- I4
- Gaminio neto svoris kg
- 7.950
- Bruto svoris kg
- 8.550
- Garantija
- 2+0
- Neto svoris kg
- 7.950
- Svoris
- 8.550
