49,60 €

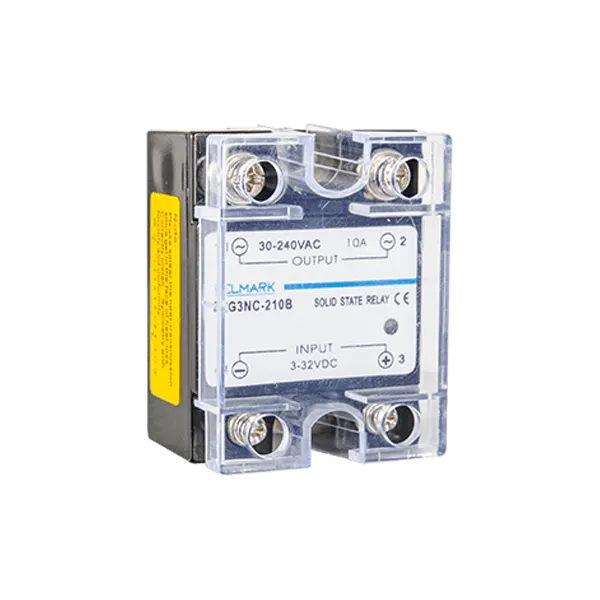

Kietojo kūno relė ZG3NC-2-10B 230AC 10A 1P
Elmark
28,82 €
Su mokesčiais
Technical characteristics:
- Load/output voltage: 30/400V, 50Hz
- Rated current: from 10Ð to 60Ð
- Insulating voltage: 1000 MΩ / min (500V)
- Surge voltage wear resistance: 2000V, 50Hz
- Dielectric strength: <2500VAC / 1 min
- Leakage current: <2 mA
- Switch ON time: <10ms
- Operating...
Technical characteristics:
- Load/output voltage: 30/400V, 50Hz
- Rated current: from 10Ð to 60Ð
- Insulating voltage: 1000 MΩ / min (500V)
- Surge voltage wear resistance: 2000V, 50Hz
- Dielectric strength: <2500VAC / 1 min
- Leakage current: <2 mA
- Switch ON time: <10ms
- Operating temperature: -5°Ð¡ - + 65°Ð¡
- Relative humidity: 35 - 85% RH
Duomenų lapas
- Prekinis ženklas
- ELMARK
- Kategorija
- E1
- Gaminio neto svoris kg
- 0.085
- Bruto svoris kg
- 0.106
- Bruto svoris kg
- 0.086
- Bruto svoris kg
- 0.185
- Bruto svoris kg
- 0.065
- Bruto svoris kg
- 0.082
- Bruto svoris kg
- 0.090
- Garantija
- 3+2
- Neto svoris kg
- 0.085
- Svoris
- 0.090
