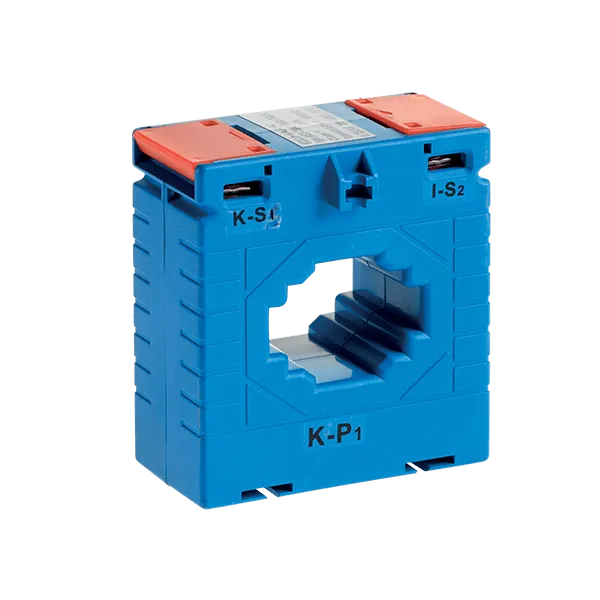

SROVĖS MATAVIMO TRANSFORMATORIAI MES-75/40 600/5 0.5
Elmark
27,30 €
Su mokesčiais
Pristatymas per 7-14 dienas
Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200Ð
- Output current: 5Ð
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision...
Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200Ð
- Output current: 5Ð
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision class: 0.5
\n
Mounting: Vertically or horizontally to the power supplying rails according to the opening of the transformer
\n
Standards: EN61010-1; EN60044-1; EN60044-6
Duomenų lapas
- Prekinis ženklas
- ELMARK
- Kategorija
- E1
- Bendra galia W
- Gaminio neto svoris kg
- 0.350
- Bruto svoris kg
- 0.400
- Bruto svoris kg
- 0.425
- Garantija
- 3+2
- Neto svoris kg
- 0.350
- Galia
- 15VA
- Svoris
- 0.400
