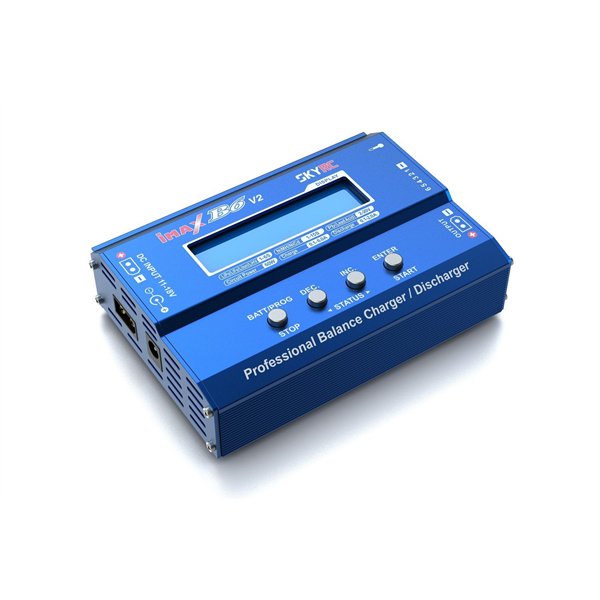

Charger SkyRC iMax B6 V2

A classic in a new version

iMax B6 V2 is an updated version of the most popular charger among users of RC models and the first ever SkyRC brand. High quality charger with microprocessor-controlled charging, discharging and regulated DC power supply is compatible with all major battery types (LiPo / LiFe / Li-Ion, LiHV, NiMH, NICd, Pb). SkyRC iMAX b6 V2 now has a charging power of 60 W with a charging current up to 6 A. Additionally, it supports charging of batteries to DJI Mavic and DJI Inspire with a maximum charging power of 4 A.

New functions

On the iMAX b6 V2 charger screen you can now see an intuitive battery charge icon as well as a record of the percentage of battery charge. This makes it much easier to assess the level of charge and discharge of the battery.

High quality microprocessor

The Cortex-M3 32-bit ARM Microprocessor Cortex-M3 high speed ensures smooth and fast data processing. Compared to the previous version, this means twenty times more possibilities. Using the proven 2.5 V - 5.5 V voltage range, the microprocessor also has strong anti-interference properties.

DC converter / DC

B6 V2 has a built-in DC power port, which can power devices with 60 W in the 5-26 V range and 1-6 A. Thanks to this charger, RC drivers have a useful gadget to power devices such as tire heaters, workshop lamps, etc.

Charging of PB batteries in cold & AGM mode

The charger is able to charge AGM and lead-acid batteries at low temperatures.

Thermal protection

The internal chemical processes of the battery will increase its temperature. When the temperature exceeds a certain threshold, the charging process is interrupted. This function is available by connecting an optional temperature sensor, which must be purchased separately here.

• Included: Specification
• iMax B6 V2 charger
  DC power cable
  Dean charging cable
  Charging cable without connector: Weight 238 g
  DC input voltage 11-18 V
  Dimensions: 115 x 84 x 31 mm
  Max. Charging 60W
  Max. Discharge 5 W
  Charging current range 0.1-6.0 A
  Discharge current range 0.1-1.0 A
  Current consumption per target 300mA/cell
  Battery voltage PB 2-20V
  LiPo/LiFe/Lilon/LiHV number of cells charged 1-6S
  NiMH/NiCd number of cells charged 1-15S
