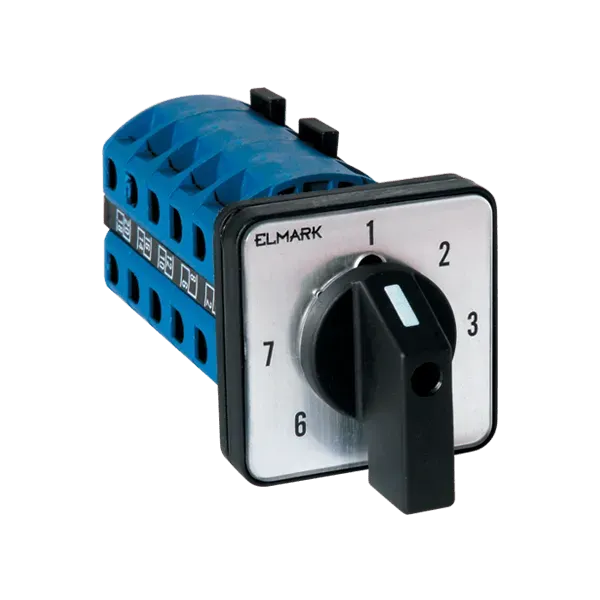

SUKAMASIS JUNGIKLIS LW26-25 25A 4.H6518/5 25A, 5 LYGIAI, 8 PADĖTYS
77,54 € Su mokesčiais
Technical characteristics:
- Power supply voltage: 230/400V; 50Hz
- Number of levels: 5
- Number of positions: 7
- Insulation voltage: 690V
- Impulse voltage withstand: 6000V
- Mechanical wear resistance: 3Ñ…105 commutation cycles
- Operating temperature: -10°Ð¡ - +50°Ð¡
- Humidity: 35-85%RH
- Commutation capacity: 25Ð
- Resistant to UV rays plastic
- Cable connection: screw joining
- Tightening torque of the bolt: 1.33Nm
- Maximum section of the power supply conductors: 4.0 mm2
Mounting:
- Directly to the control panel
- Thickness of the surface: max 5mm
Standards: EN 60947-1; EN 60947-3-1
\n
Duomenų lapas
- Brand
- ELMARK
- Category
- E1
- Product net weight kg
- 0.210
- Weight Gross kg
- 0.210
- Warranty
- 3+2
- Weight Net kg
- 0.210
- Svoris
- 0.210
