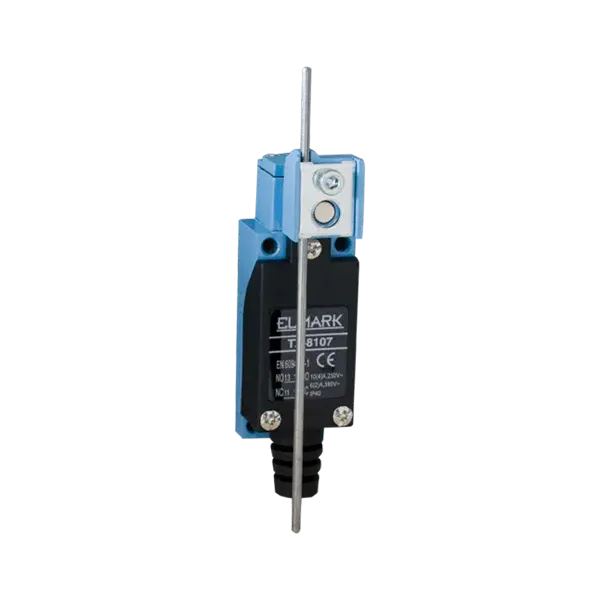

RIBOJIMO JUNGIKLIS TZ-8107
15,96 € Su mokesčiais
Technical characteristics:
- Dielectric strength: 1000V AC
- Insulation resistance: 100mΩ
- Contact resistance: 25mΩ
- Electrical wear resistance (number of cycles): 500000 with active load
- Mechanical wear resistance (number of cycles): 5000000
- Gearing speed: 5mm/s to 0.5m/s
- Rated voltage: 230V
- IP code: IP40
- Cable input: cable gland PG11
- Section of the power supply conductor: up to 2.0mm
- Fastening strenght of terminals: 6-8kgf/cm
Standards: EN60947-1; EN60947-5-1
Duomenų lapas
- Brand
- ELMARK
- Category
- E1
- Product net weight kg
- 0.160
- Weight Gross kg
- 0.170
- Warranty
- 3+0
- Weight Net kg
- 0.160
- Svoris
- 0.170
