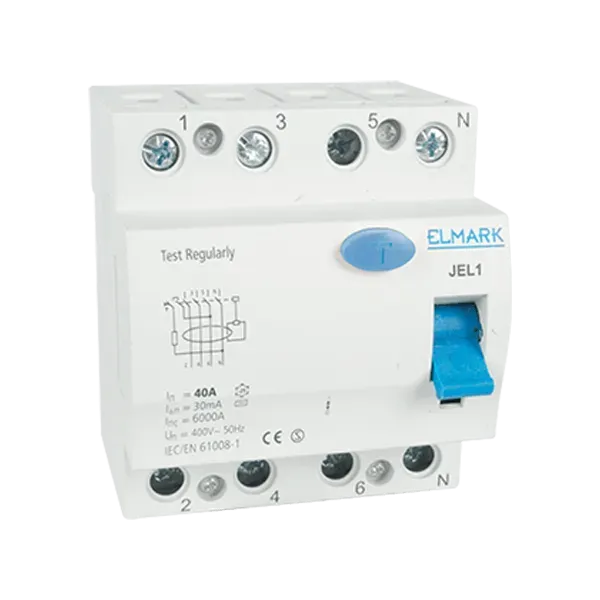

RESIDUAL CURRENT DEVICE JEL1 4P 63A/500MA
RESIDUAL CURRENT DEVICE JEL1 4P 63A/500MA
RESIDUAL CURRENT DEVICE JEL1 4P 63A/500MA
RESIDUAL CURRENT DEVICE JEL1 4P 63A/500MA
RESIDUAL CURRENT DEVICE JEL1 4P 63A/500MA

Liekamosios srovės relė JEL1 4P 63A/500MA

57,97 € Su mokesčiais
Nuoroda
3800131107879
Galima (34 Prekės)



\n

Technical characteristics:
- Rated current: 10-100 А
- Rated operating voltage: 230/400V; 50/60Hz
- Rated residual current: 30/100/300/500 mA
- Number of poles: 2/4
- Surge voltage wear resistance: ≥2000V
- Short circuit current wear resistance: 6000А
- IP code: IP>20
- Ambient temperature: -10°÷65ºÐ¡
- Installation altitude: up to 2000m

\n

Mounting: Vertical on a DIN rail

\n

Standards: EN 61008-1; EN 61008-2; EN 60947-1

Duomenų lapas

Brand
ELMARK
Category
Dimension
L:72/W:70/H:81
Product net weight kg
0.295
Weight Gross kg
0.335
Warranty
7+0
Weight Net kg
0.295
Dimensions (mm)
L:72/W:70/H:81
Svoris
0.335
