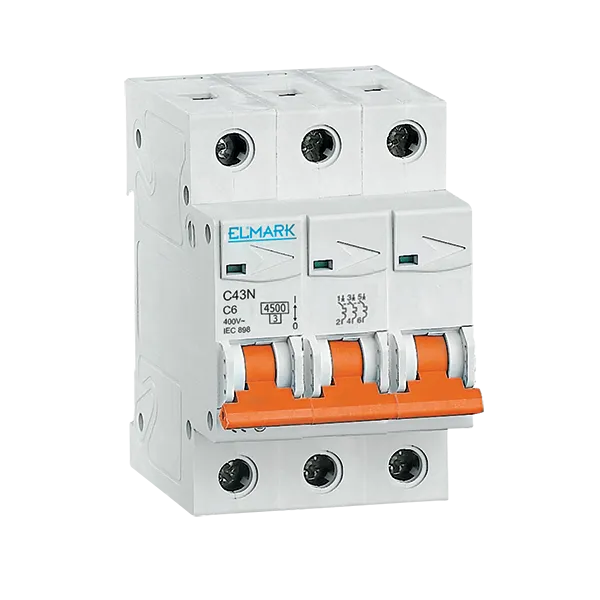

Miniatiūrinis automatinis jungiklis C43N/40A 3P, kreivė C
Elmark
0,00 €
Su mokesčiais
Pristatymas per 7-14 dienas
Technical characteristics:
- Rated operating voltage: 230/400V; 50/60Hz
- Rated current: 2-63Ð
- Breaking capacity: 4500Ð
- Poles: 1, 2, 3
- Tripping curve: C
С - the maximum current release breaks between 5 and 10 In;used to protect main power supply cables and conventional consumers
\n
-...
Technical characteristics:
- Rated operating voltage: 230/400V; 50/60Hz
- Rated current: 2-63Ð
- Breaking capacity: 4500Ð
- Poles: 1, 2, 3
- Tripping curve: C
С - the maximum current release breaks between 5 and 10 In;used to protect main power supply cables and conventional consumers
\n
- Electrical wear resistance (number of cycles ):≥4000
- Mechanical wear resistance (number of cycles):≥20000
- Limitation class: 3
- IP code: IP>20
- Ambient temperature: -5 to +65°Ð¡±2°Ð¡
\n
Mounting: Vertical on a DIN rail
\n
Standards: EN60898-1
Duomenų lapas
- Prekinis ženklas
- ELMARK
- Prekinis ženklas
- elmark
- Kategorija
- E1
- Matmuo
- L:72/W:54/H:78
- Gaminio neto svoris kg
- 0.245
- Bruto svoris kg
- 0.275
- Garantija
- 7+0
- Garantija
- 7+0(I3)
- Neto svoris kg
- 0.245
- Matmenys (mm)
- L:72/W:54/H:78
- Svoris
- 0.275
- Tipas
- E1
