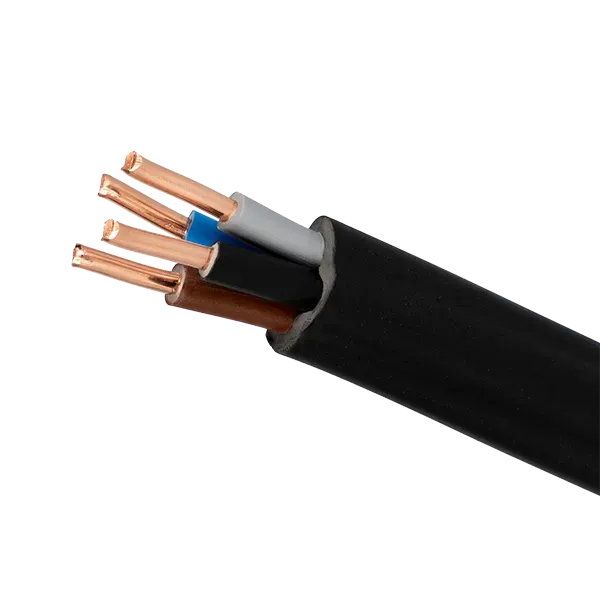

КАБЕЛЬ СИЛОВОЙ 4X10ММ² 0,6/1кВ

For transmission and distribution of electric power at construction of distribution
networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.
Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations.
On request for UV and weather resistance, the cable is designed with appropriate sheath
resistance.

Technical characteristics:
- Manufactured according to BDS 16291-85
- Rated voltage: U0/U - 0.6/1kV
- Test voltage:
   - AC: 4kV/50 Hz.
   - DC: 12kV
- Maximum conductor temperature: +70°C
- Maximum conductor temperature at short circuit for 5 sec: +160°C
- Ambient temperature: -30°C to +50°C
- Minimum temperature during unstallation: -5°C
- Minimum bending radius during installation: 10D
- D - cable height
- Flame test: flame retardant BDS IEC 332-1
- Sheath colour: gray, black

Construction:
- Copper conductors
- Flexibility class:
   - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228
   - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228
   - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228
- Insulation: PVC
- Sheath: PVC
- The cable is designed WITH or WITHOUT filling

Description of wires shape:
- RE - solid round
- RM - multi-core round
- SE - solid sector
- SM - multi-core sector
- RMV - multi-core round compacted
