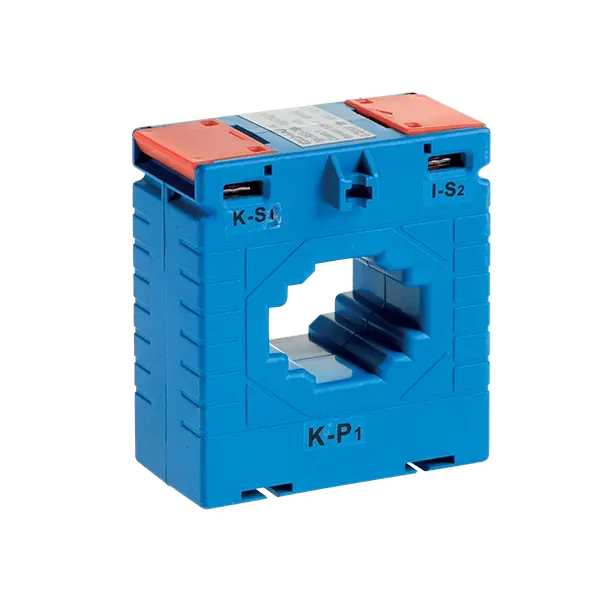

CURRENT MEASUREMENT TRANSFORMERS MES-75/30 150/5 0.5
CURRENT MEASUREMENT TRANSFORMERS MES-75/30 150/5 0.5
CURRENT MEASUREMENT TRANSFORMERS MES-75/30 150/5 0.5
CURRENT MEASUREMENT TRANSFORMERS MES-75/30 150/5 0.5

ТРАНСФОРМАТОРЫ ИЗМЕРЕНИЯ ТОКА МЭС-75/30 150/5 0,5

24,27 € С НДС
Reference
3800131102829
Available (129 шт.)

Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200А
- Output current: 5А
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision class: 0.5

\n


Mounting: Vertically or horizontally to the power supplying rails according to the opening of the transformer

\n

Standards: EN61010-1; EN60044-1; EN60044-6

Data sheet

Brand
ELMARK
Category
E1
Total power W
2
Total power W
Product net weight kg
0.500
Weight Gross kg
0.000
Weight Gross kg
0.400
Weight Gross kg
0.550
Warranty
3+2
Weight Net kg
0.500
Power
2.5VA
Вес
0.550
