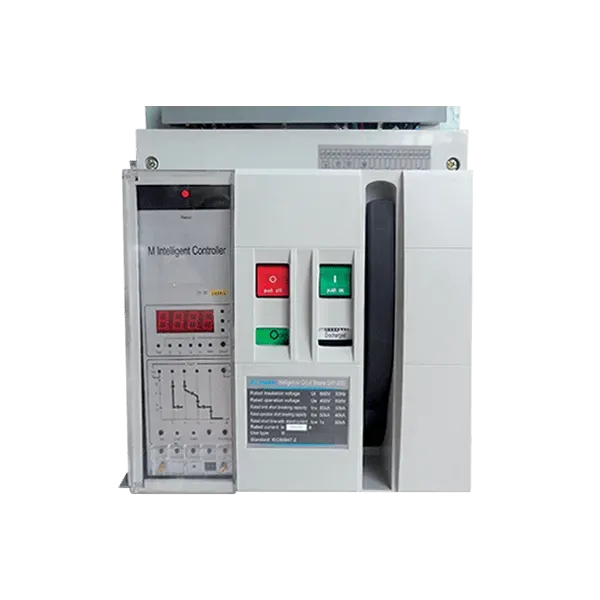

Воздушный автоматический выключатель DW1-3200 3200A
6 782,90 € С НДС
\n
Technical characteristics:
- Rated operating voltage: 690V; 50/60Hz
- Insulation voltage: 2000V
- Surge voltage wear resistance: ≥ 8000V
- Rated current: 2000Ð;2500Ð;3200Ð
- Breaking capacity: 80кÐ;100кÐ
- Electrical wear resistance (number of cycles): ≥ 2000
- Mechanical wear resistance (number of cycles): ≥ 9000
- IP code: IP54
- Ambient temperature: -10°÷65ºÐ¡
- Maximum altitude: up to 2000m
Mounting: On a vertical surface using bolts and maximum gradient of 5%
\nStandards: EN60947-1; EN60947-2
Data sheet
- Brand
- ELMARK
- Category
- E1
- Dimension
- W:363/H:402
- Product net weight kg
- 58.500
- Weight Gross kg
- 2.449
- Weight Gross kg
- 63.550
- Weight Gross kg
- 1.636
- Warranty
- 5+2
- Weight Net kg
- 58.500
- Dimensions (mm)
- W:363/H:402
- Вес
- 63.550
