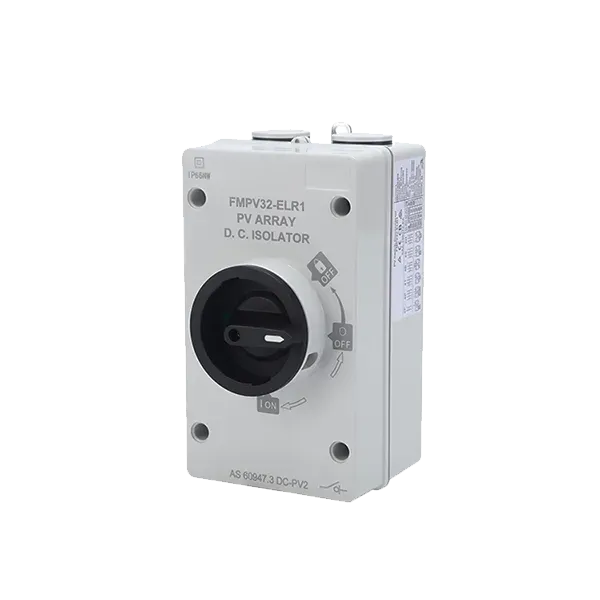

EL-DC4P līdzstrāvas slēdzis 4Ω /32Ω, 1000V 32Ω

DC switches shall be installed between the solar arrays and solar inverter for isolation the PV array during system installation or any maintenane.

\n

\n

TECHNICAL DATA:

\n

\n

• Rated insulation voltage (Ui): 1200V

\n

• Rated heating current (Ith): 32A

\n

• Poles: 4P

\n

• Mechanical life: 10 000 cycles

\n

• Operating temperature: -25 to +70°C

\n

• Storage temperature: -40 to +70°C

\n

• IP code: IP66

\n

• Handle colour: Black

\n

\n

FEATURES:

\n

\n

• Vertical and horizontal installation

\n

• UV resistance

\n

• Flame retardant material

\n

• Breatle valve

\n

• Lockable at off position
