0,00 €

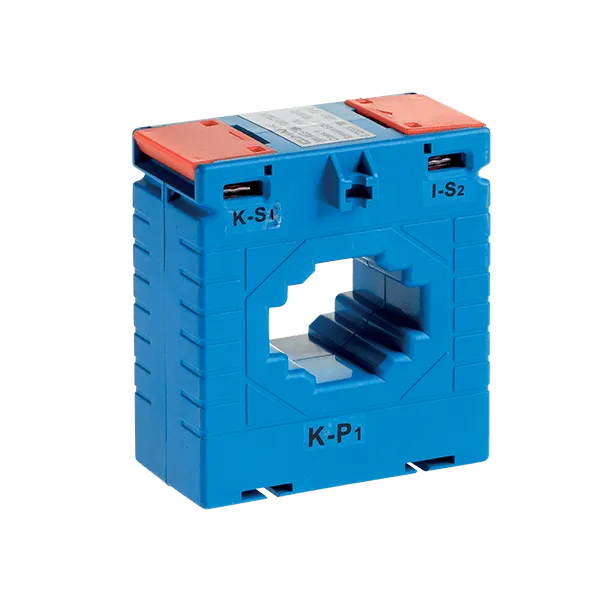

STRĀVAS MĒRĪŠANAS TRANSFORMĀTORI MES-75/30 150/5 0,5
Elmark
24,27 €
AR PVN
Piegāde 7-14 dienas
Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200Ð
- Output current: 5Ð
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision...
Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200Ð
- Output current: 5Ð
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision class: 0.5
\n
Mounting: Vertically or horizontally to the power supplying rails according to the opening of the transformer
\n
Standards: EN61010-1; EN60044-1; EN60044-6
Datu lapa
- Zīmols
- ELMARK
- Kategorija
- E1
- Kopējā jauda W
- 2
- Kopējā jauda W
- Produkta neto svars kg
- 0.500
- Bruto svars kg
- 0.000
- Bruto svars kg
- 0.400
- Bruto svars kg
- 0.550
- Garantija
- 3+2
- Neto svars kg
- 0.500
- Jauda
- 2.5VA
- Svars
- 0.550
