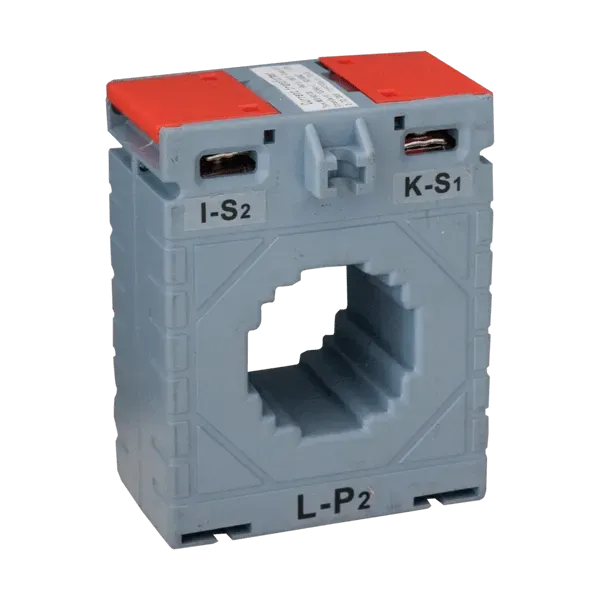

STRĀVAS MĒRĪŠANAS TRANSFORMĀTORI MES-86/60 400/5 0,5
28,67 € AR PVN
Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200Ð
- Output current: 5Ð
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision class: 0.5
Mounting: Vertically or horizontally to the power supplying rails according to the opening of the transformer
Standards: EN61010-1; EN60044-1; EN60044-6
Datu lapa
- Brand
- ELMARK
- Category
- E1
- Total power W
- Product net weight kg
- 0.450
- Weight Gross kg
- 0.450
- Warranty
- 3+2
- Weight Net kg
- 0.450
- Power
- 15VA
- Svars
- 0.450
