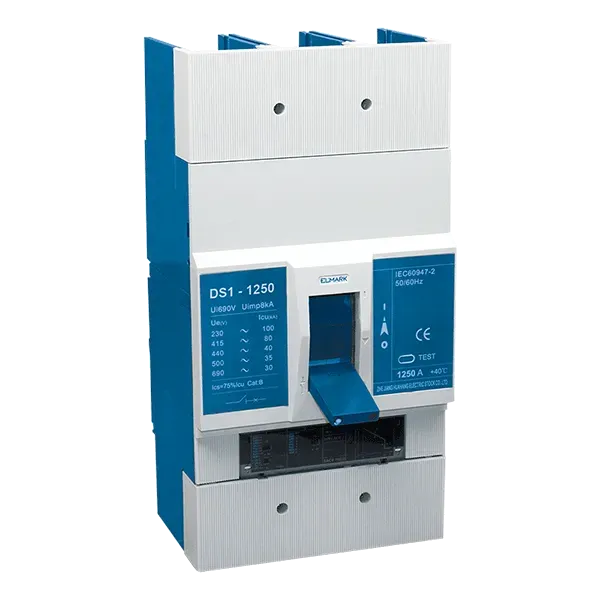

ELEKTRONISKS LIETĀ KORPUSA ĶĒDES PĀRTRAUKĒJS DS1-1250E 1000A 3P AR REGULĒJAMU DIAPAZONU 400-1000A

Technical characteristics:
- Rated operating voltage: 690V; 50/60Hz
- Rated current: 400-1600А
- Insulation voltage: 2000V
- Poles: 3 and 4
- IP code: IP>20
- Ambient temperature: -20°÷65ºÐ¡

Advantages:
- Wide range of auxiliary devices
- Easy adjustment of the elecronic device
- High reliability and efficiency
- High electrical and mechanical wear resistance
- Compact size
- Easy mounting and installation

Functions:
- Control and protection of electrical installations
- Main breaker in residential or industrial distributing installations
- Protects heavy loaded electrical circuits

Applications:
- Residential buildings
- Administrative buildings
- Commercial property
- Industrial applications
- Distribution boards

Mounting: Vertical on a smooth surface using bolts

Standards: EN60947-1; EN60947-2
