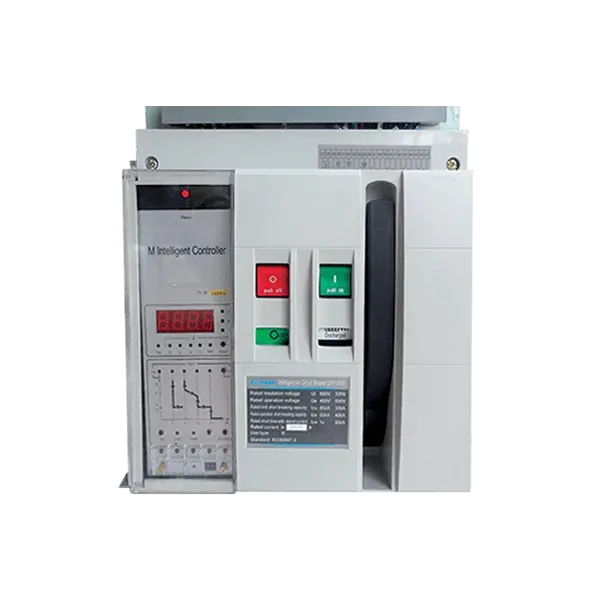

GAISA ĶĒDAS PĀRTRAUKĒJS DW1-2000 2000A
4 837,93 € AR PVN
\n
Technical characteristics:
- Rated operating voltage: 690V; 50/60Hz
- Insulation voltage: 2000V
- Surge voltage wear resistance: ≥ 8000V
- Rated current: 2000Ð;2500Ð;3200Ð
- Breaking capacity: 80кÐ;100кÐ
- Electrical wear resistance (number of cycles): ≥ 2000
- Mechanical wear resistance (number of cycles): ≥ 9000
- IP code: IP54
- Ambient temperature: -10°÷65ºÐ¡
- Maximum altitude: up to 2000m
Mounting: On a vertical surface using bolts and maximum gradient of 5%
\nStandards: EN60947-1; EN60947-2
Datu lapa
- Brand
- ELMARK
- Category
- E1
- Dimension
- W:373/H:402
- Product net weight kg
- 47.700
- Weight Gross kg
- 53.100
- Warranty
- 5+2
- Weight Net kg
- 47.700
- Dimensions (mm)
- W:373/H:402
- Svars
- 53.100
