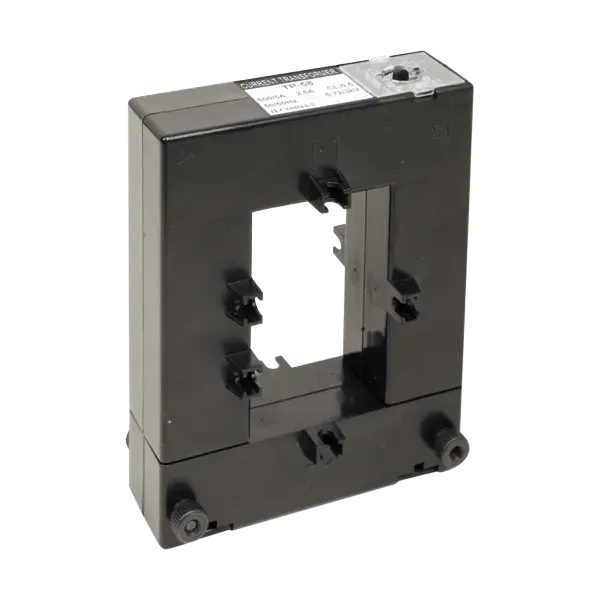

CURRENT MEASUREMENT TRANSFORMERS CP 88, 600/5, class 0,5

VIRTAMITTAUSMUUNTAAJAT CP 88, 600/5, luokka 0,5

106,39 € Sisältää alv:n
Viite
3800131137340
Loppunut varastosta

Technical characteristics:
- Maximum operating voltage: 720V,50Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 200-1000А
- Output current: 5А
- Precision class: 0.5; 1
- Safety coefficient: fs ≤5
- Rated load: up to 30VA
- Secondary coil connection: shoe terminal

\n


Standard: EN60044-1

Tietolomake

Brand
ELMARK
Category
E1
Total power W
1
Total power W
Product net weight kg
1.000
Weight Gross kg
1.080
Warranty
3+2
Weight Net kg
1.000
Power
1.5VA
Paino
1.080
