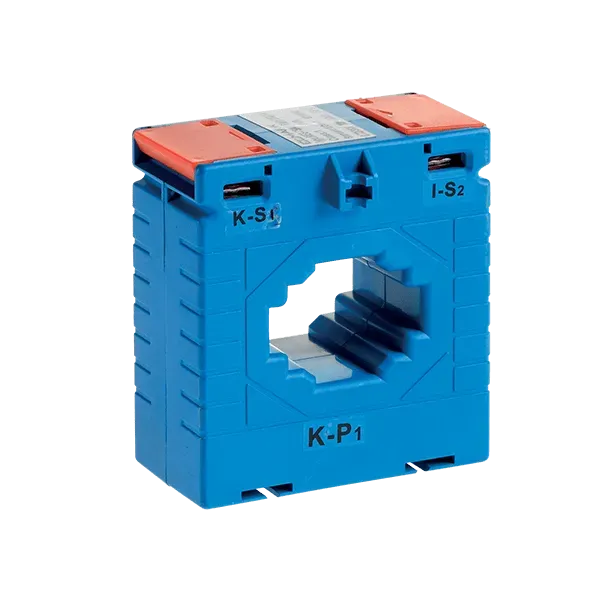

CURRENT MEASUREMENT TRANSFORMERS MES-75/40 250/5 0.5
CURRENT MEASUREMENT TRANSFORMERS MES-75/40 250/5 0.5
CURRENT MEASUREMENT TRANSFORMERS MES-75/40 250/5 0.5
CURRENT MEASUREMENT TRANSFORMERS MES-75/40 250/5 0.5

VIRTAMITTAUSMUUNTAJAT MES-75/40 250/5 0.5

25,58 € Sisältää alv:n
Viite
3800131127785
Käytettävissä oleva (101 Tuotteet)

Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200А
- Output current: 5А
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision class: 0.5

\n


Mounting: Vertically or horizontally to the power supplying rails according to the opening of the transformer

\n

Standards: EN61010-1; EN60044-1; EN60044-6

Tietolomake

Brand
ELMARK
Brand
TK Lighting
Category
Ceiling lamp
Colour temperature (Kelvin)
Total power W
Product net weight kg
0.350
Weight Gross kg
0.400
Weight Gross kg
0.425
Warranty
3+2
Weight Net kg
0.350
Power
5VA
Paino
0.400
