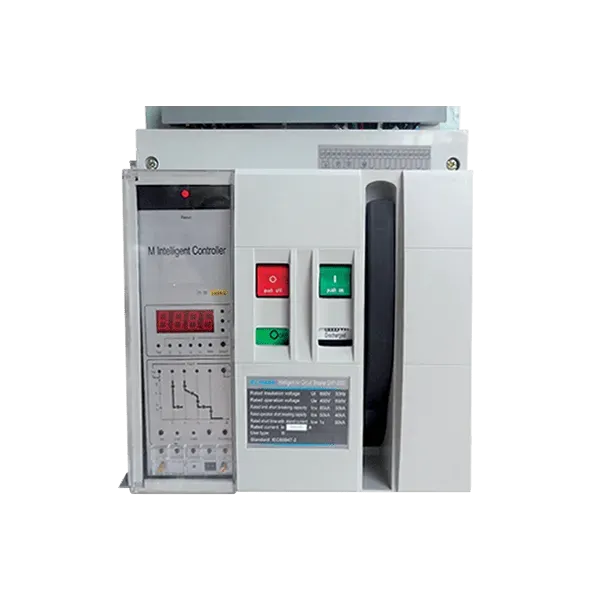

ILMAKATKAISIMEN DW1-2000 2000A

\n

Technical characteristics:
- Rated operating voltage: 690V; 50/60Hz
- Insulation voltage: 2000V
- Surge voltage wear resistance: ≥ 8000V
- Rated current: 2000А;2500А;3200А
- Breaking capacity: 80кА;100кА
- Electrical wear resistance (number of cycles): ≥ 2000
- Mechanical wear resistance (number of cycles): ≥ 9000
- IP code: IP54
- Ambient temperature: -10°÷65ºÐ¡
- Maximum altitude: up to 2000m

\n

Mounting: On a vertical surface using bolts and maximum gradient of 5%

\n

Standards: EN60947-1; EN60947-2
