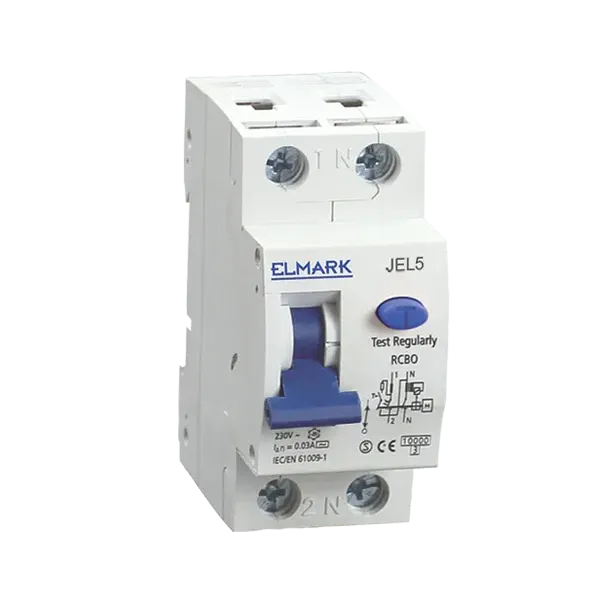

YHDISTELTY JÄÄNNÖSVIRTAKATKA JEL5 2P 40A/100mA
25,36 € Sisältää alv:n
Description:
- Combined circuit breakers with residual current devices
Technical characteristics:
- Rated current: 10-40Ð
- Rated operating voltage: 230V,50Hz
- Rated residual current: 30/100/300/500mA
- Number of poles: 2
- Tripping curve of the circuit breaker: С
- Surge voltage wear resistance: ≥2000V
- Activation time:
the residual current device <0.1s at IΔn and <0.04s at 2 IΔn
the circuit breaker: < 0.1s
- Ambient temperature: -10°÷65ºÐ¡
- Installation altitude: up to 2000m
Mounting: Vertical on a DIN rail
Standards: EN61009-1; EN61009-2
Tietolomake
- Brand
- ELMARK
- Category
- E1
- Dimension
- L:72/W:35/H:81
- Product net weight kg
- 0.155
- Weight Gross kg
- 0.180
- Warranty
- 7+0
- Weight Net kg
- 0.155
- Dimensions (mm)
- L:72/W:35/H:81
- Paino
- 0.180
