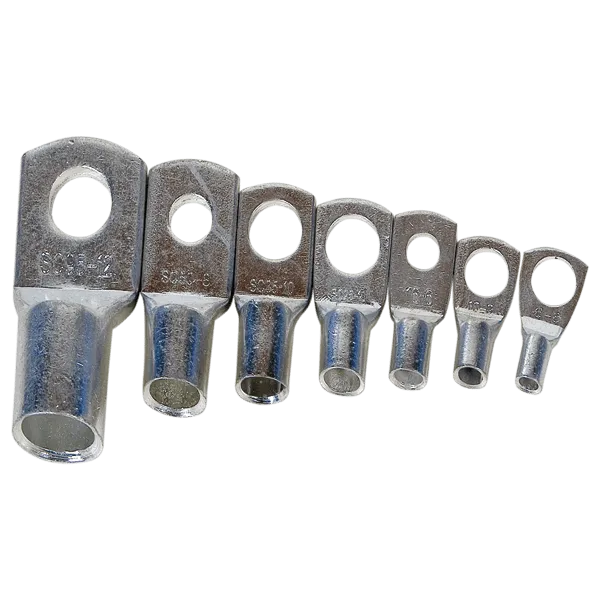

ERISTÄMÄTÖN KAAPELILIITIN SC 70/10

They are used for joining copper conductors - multicore conductors with
different section to electrical devices or connections to combine all cores
of the conductor, to provide safe connection at tightening in terminals
and safe connection at the base ot the terminal. Thus the connection stability
against vibrations is increased and the possibility for short circuit is
decreased. They are made of copper alloy with galvanic tin coating. The
connection is realized through crimping pliers, through mechanic pressing
of the terminal and conductor.

\n

Technical characteristics model JM:
- Material: copper alloy
- Coating: tin
- For conductors with sections from 4÷240mm²
- Opening for М6-М16 mm bolt

\n

Advantages:
- Provide reliable connection even in the presence of vibrations
- Provide safe connection and tightening in terminal
- Long life

\n

Functions:
- Used for joining of multicore power conductors with different sections to electrical devices

\n

Application:
- Low voltage electricity distribution networks

\n

Mounting: By mechanical pressing using crimping pliers

\n

Standards: EN61238-1
