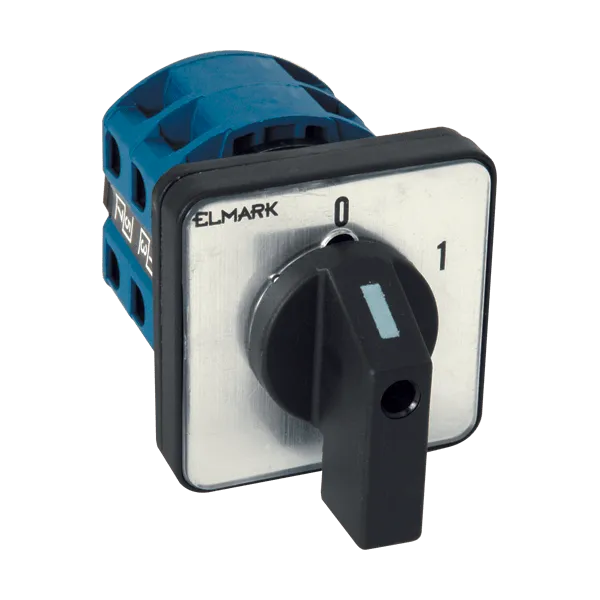

KÄÄNTÖKYTKIN LW26-20Q 20A, 2 TASOA, 2 ASENTOA

Technical characteristics:
- Power supply voltage: 230/400V; 50Hz
- Number of levels: 2
- Number of positions: 2
- Insulation voltage: 690V
- Impulse voltage withstand: 6 000V
- Mechanical wear resistance: 3Ñ…105 commutation cycles
- Operating temperature: -10°Ð¡ - +50°Ð¡
- Humidity: 35 - 85%RH
- Commutation capacity: 20-160А
- Resistant to UV rays plastic
- Cable connection: screw joining
- Tightening torque of the bolt: 1.33Nm
- Maximum section of the power supply conductors: 50.0mm2

\n

Mounting:
- Directly to the control panel
- Thickness of the surface: max 5mm
