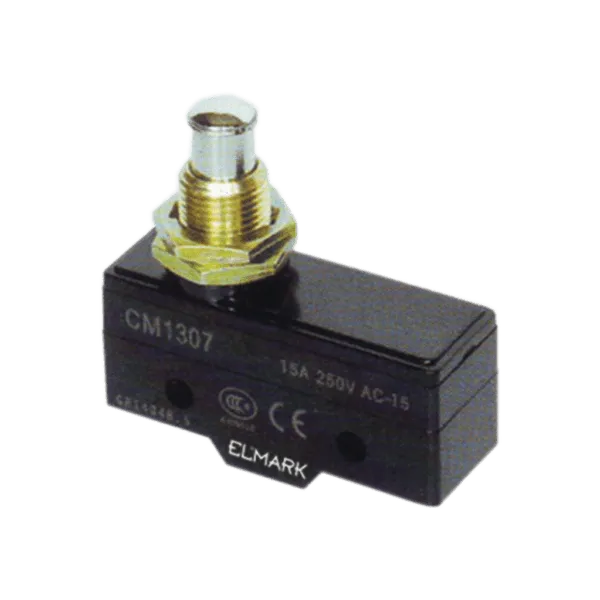

RAJAKYTKIN CM-1307

RAJAKYTKIN CM-1307

Elmark
10,58 € Sisältää alv:n
Toimitus 7-14 päivää
Technical characteristics: - Dielectric strength: 1000V AC - Insulation resistance: 100mΩ min - Contact resistance: 5mΩ - Electrical wear resistance with active load (number of cycles): 500000 - Mechanical wear resistance (number of cycles): 5000000 - Operating speed: 0.1mm/s to 1.0 m/s - Rated...
Viite
468105
Käytettävissä oleva (584 Tuotteet)
Lue arvosteluja (0)

Technical characteristics:
- Dielectric strength: 1000V AC
- Insulation resistance: 100mΩ min
- Contact resistance: 5mΩ
- Electrical wear resistance with active load (number of cycles): 500000
- Mechanical wear resistance (number of cycles): 5000000
- Operating speed: 0.1mm/s to 1.0 m/s
- Rated voltage: 230V
- IP code: IP65
- Fastening strenght of terminals: 6-8kgf/cm

\n


Standards: EN60947-1; EN60947-5-1

Tietolomake

Brändi
ELMARK
Kategoria
E1
Tuotteen nettopaino kg
0.155
Bruttopaino kg
0.165
Takuu
3+0
Nettopaino kg
0.155
Paino
0.165
