55,80 €

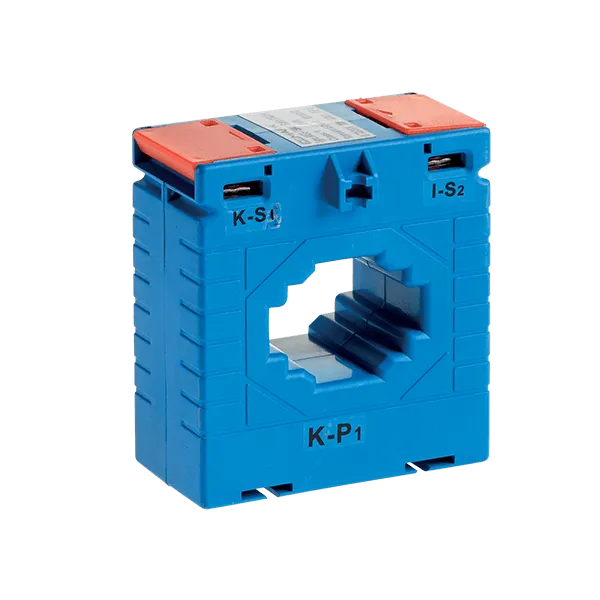

VIRTAMITTAUSMUUNTAJAT MES-75/30 150/5 0.5
Elmark
24,27 €
Sisältää alv:n
Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200Ð
- Output current: 5Ð
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision...
Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200Ð
- Output current: 5Ð
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision class: 0.5
\n
Mounting: Vertically or horizontally to the power supplying rails according to the opening of the transformer
\n
Standards: EN61010-1; EN60044-1; EN60044-6
Tietolomake
- Brändi
- ELMARK
- Kategoria
- E1
- Kokonaisteho W
- 2
- Kokonaisteho W
- Tuotteen nettopaino kg
- 0.500
- Bruttopaino kg
- 0.000
- Bruttopaino kg
- 0.400
- Bruttopaino kg
- 0.550
- Takuu
- 3+2
- Nettopaino kg
- 0.500
- Teho
- 2.5VA
- Paino
- 0.550
