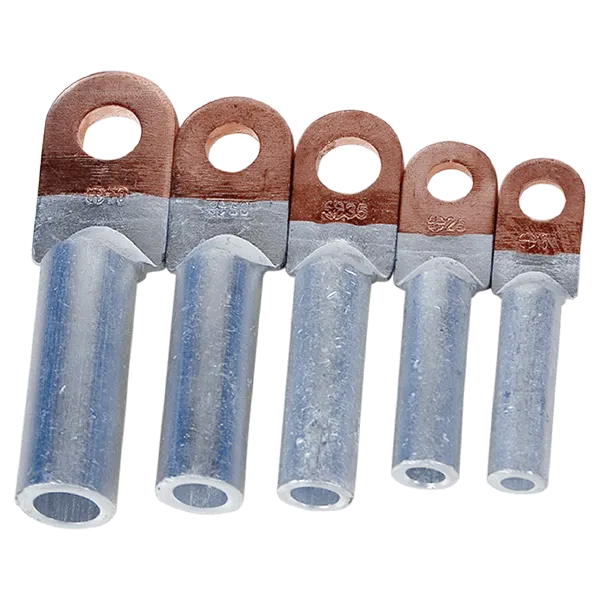

BIMETALLILINE MITTEISOLATSIOONIGA KAABLIKLEMMI DTL-1-25/8

They are used for joining aluminium conductors - multicore conductors with
different section to electrical devices or connections to combine all cores
of the conductor, to provide safe connection at tightening in terminals
and safe connection at the base ot the terminal. Thus the connection stability
against vibrations is increased and the possibility for short circuit is
decreased. They are made of copper and aluminium alloys as in the aluminium
billet is made under special technology the copper terminal formed like an
ear. The connection is realized through crimping pliers, through mechanic
pressing of the terminal and conductor.

\n

Technical characteristics model DTL:
- Material: copper and aluminium alloy without galvanic coating
- For conductors with sections from 16÷240mm²
- Opening for М8-М16 mm bolt

\n

Advantages:
- Provide reliable connection even in the presence of vibrations
- Provide safe connection and tightening in terminal
- Long exploitation life

\n

Functions:
- Used for joining of multicore power conductors with different sections to electrical devices

\n

Application:
- Low voltage electricity distribution networks

\n

Mounting: By mechanical pressing using crimping pliers

\n

Standards: EN61238-1
