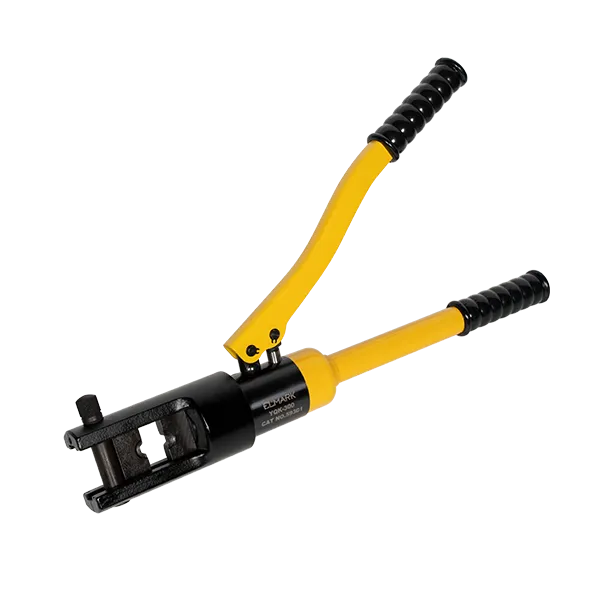

KRIMPITANGID YQK-300

Technical characteristics:
- Widht of the element: 22mm
- Shape of the crimping element: hexahedral
- Size of the crimping element: 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
- Section of the crimped conductors:
= Al conductors: from 10 to 300mm2
= Cu conductors: from 10 to 240mm2
- Pressing strength: 100kN
- Lenght: 500mm

\n

Functions:
- Crimping of aluminum or copper conductors with cable terminals or bush in the corresponding size

\n

Advantages:
- Metal box for the instrument
- A set of congestion hoops for the hydraulic cylinder
