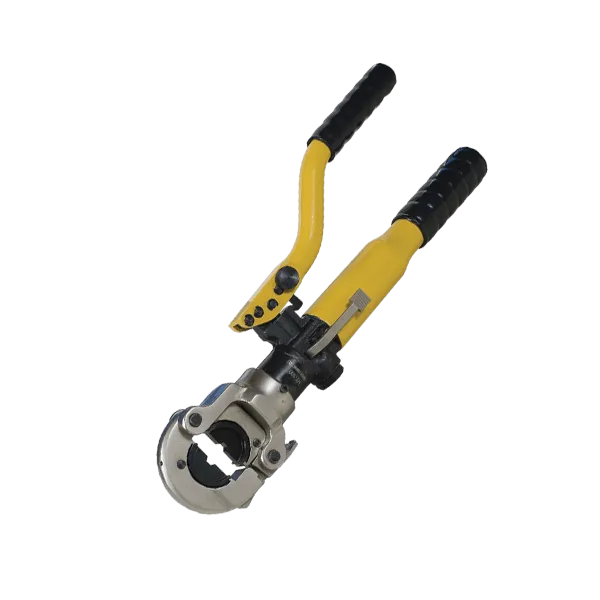

KRIMPITANGID HT-300
Elmark
984,25 €
Maksudega
Technical characteristics:
- Crimping head turning at 360° which facilitates the crimping of static conductors
- Device for automatic monitoring of the effort at crimping completion
- Shape of the crimping element: hexahedral
- Size of the crimping element: 16, 25, 35, 50, 70, 95, 120, 150, 185,...
Technical characteristics:
- Crimping head turning at 360° which facilitates the crimping of static conductors
- Device for automatic monitoring of the effort at crimping completion
- Shape of the crimping element: hexahedral
- Size of the crimping element: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
- Section of the crimped conductors:
= Al conductors: from 16 to 300mm2
= Cu conductors: from 16 to 240mm2
- Pressing strength: 60kN
- Lenght: 460mm
\n
Functions:
- Crimping of aluminum or copper conductors with cable terminals or bush in the corresponding size
\n
Advantages:
- Metal box for the instrument
- A set of congestion rings for the hydraulic cylinder
Andmeleht
- Bränd
- ELMARK
- Kategooria
- I4
- Toote netokaal kg
- 7.500
- Brutokaal kg
- 8.050
- Garantii
- 2+0
- Netokaal kg
- 7.500
- Kaal
- 8.050
