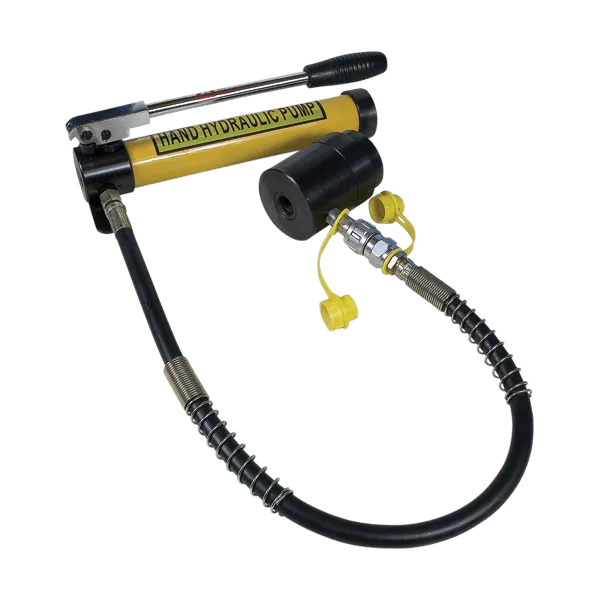

HÜDRAULILINE PRESS SYK-15, KOMPLEKT

Technical characteristics:
- Protracting piercing head supplied with a house for the hydraulic oil that
gives possibility for piercing openings everywhere on the metal surface
- Shape of the cutting element: Round and Square
- Size of the cutting element:
= Square: 32x32mm
= Round openings: Ø22, 27.5, 34.3, 40, 49, 60.8mm
- Piercing capacity
= Metal sheet 3mm: openings up to Ø60.8mm
= Metal sheet 2mm: openings up to Ø115.5mm
= square opening: up to 110x110mm
- Element pressing strength: 15T
- Thickness of th element: 25mm

\n

Functions:
- Cutting through openings in metal sheet with gauge up to 3mm without rotary motion

\n

Advantages:
- Metal box for the instrument
- A set of congestion hoops for the hydraulic cylinder
- Additional set of cutting elements for cable glands – Ø16, 20, 26.2, 32.5, 39, 51, 63
and a square for display devices 46.5x46.5, 68x68 (ordered additionally as Cat.number: 54002)
