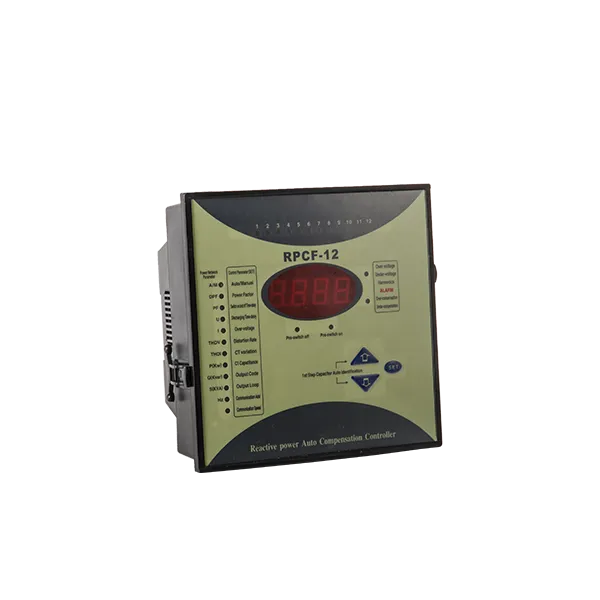

AUTOMAATSE REGULEERIMISE KONTROLLER HY-RPCF12 12 ASTMET

Technical characteristics:
- Rated operating voltage: 230/400V
- Operating frequency: 45-65HZ
- Insulation voltage: 690V
- Surge voltage wear resistance: 6kV/min
- Measurement range: 0-9999kVAr
- Measurement accuracy:
= Voltage: ±1%
= Current: ±1%
= Power factor: ±1%
= Reactive energy: ±2%
- Operating temperature: -10° to 65°Ð¡
- Humidity: 30-60%
- Sensitivity: 20mА
- Maximum altitude: 2500m

\n

Advantages:
- Indication and setting parameters like power factor
- Real time showing of many system parameters
- Options for selection of manual and automatic operating mode
- Indication of overvoltage or lack of voltage
- LED indication of displayed parameters and outputs in operation
- High level of security of data
- Easy programming
- Secure control of the outputs

\n

Functions:
- Control of capacitors systems with 12/16 controlling outputs

\n

Applications:
- Industry
- Administrative and public buildings

\n

Mounting: On the front panel of the box, after an opening is cut

\n

Standards: EN60831-1; EN60831-2
