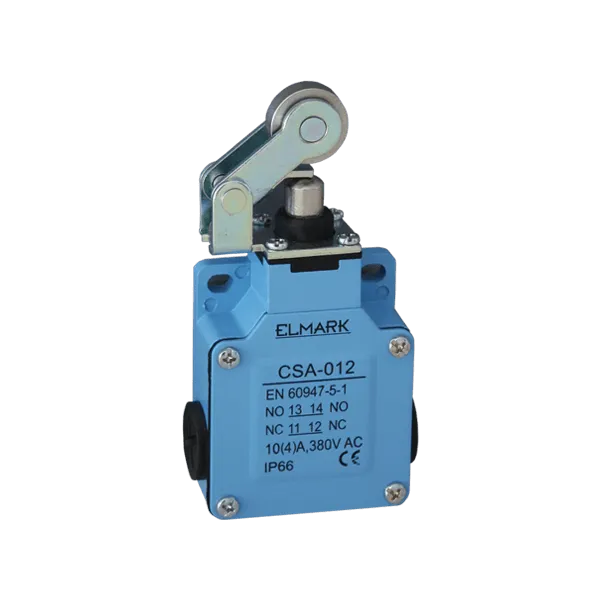

PIIR LÜLITI CSA-012
Elmark
26,39 €
Maksudega
Technical characteristics:
- Dielectric strength: 1000V AC
- Insulation Resistance: 100mΩ
- Electrical wear resistance (number of cycles): 500 000 at active load
- Mechanical wear resistance (number of cycles): 1 000 000
- Activation speed: 5mm/s to 0.5m/s
- Rated voltage: 230V
- Rated current: up...
Technical characteristics:
- Dielectric strength: 1000V AC
- Insulation Resistance: 100mΩ
- Electrical wear resistance (number of cycles): 500 000 at active load
- Mechanical wear resistance (number of cycles): 1 000 000
- Activation speed: 5mm/s to 0.5m/s
- Rated voltage: 230V
- Rated current: up to 10Ð
- IP code: IP65
- Ceble input: cable gland PG11
- Section of the power supply conductor: to 2mm2
- Fastening strength of terminals: 6-8kgf/cm
\n
Standards: EN 60947-1; EN 60947-5-1
Andmeleht
- Bränd
- ELMARK
- Kategooria
- E1
- Toote netokaal kg
- 0.200
- Brutokaal kg
- 0.210
- Garantii
- 3+0
- Netokaal kg
- 0.200
- Kaal
- 0.210
