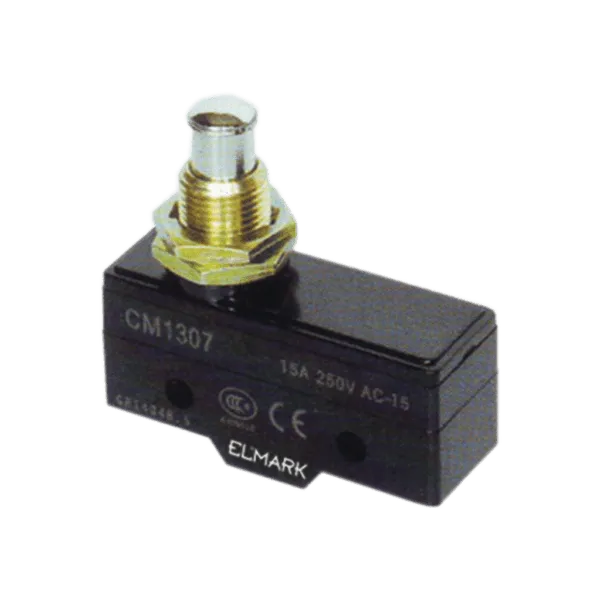

PIIR LÜLITI CM-1307
Elmark
10,58 €
Maksudega
Tarne 7-14 päeva
Technical characteristics:
- Dielectric strength: 1000V AC
- Insulation resistance: 100mΩ min
- Contact resistance: 5mΩ
- Electrical wear resistance with active load (number of cycles): 500000
- Mechanical wear resistance (number of cycles): 5000000
- Operating speed: 0.1mm/s to 1.0 m/s
- Rated...
Technical characteristics:
- Dielectric strength: 1000V AC
- Insulation resistance: 100mΩ min
- Contact resistance: 5mΩ
- Electrical wear resistance with active load (number of cycles): 500000
- Mechanical wear resistance (number of cycles): 5000000
- Operating speed: 0.1mm/s to 1.0 m/s
- Rated voltage: 230V
- IP code: IP65
- Fastening strenght of terminals: 6-8kgf/cm
\n
Standards: EN60947-1; EN60947-5-1
Andmeleht
- Bränd
- ELMARK
- Kategooria
- E1
- Toote netokaal kg
- 0.155
- Brutokaal kg
- 0.165
- Garantii
- 3+0
- Netokaal kg
- 0.155
- Kaal
- 0.165
