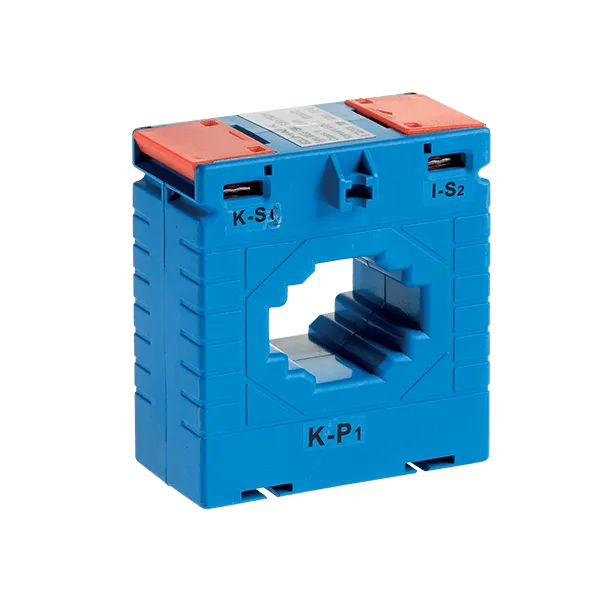

Voolumõõtetrafod MES-75/30 150/5 0,5

Elmark
24,27 € Maksudega
Tarne 7-14 päeva
Technical characteristics: - Maximum operating voltage: 720V,50 Hz - Acceptable deviation of the operating current: 1.2 Ñ… In - Input current: 50-1200А - Output current: 5А - Surge voltage wear resistance: 4000V,50Hz (1 min) - Operating temperature: -5° to 65°Ð¡ - Humidity: 35-85% RH - Precision...
Viide
3800131102829
Saadav (115 Tooted)
Loe arvustusi (0)

Technical characteristics:
- Maximum operating voltage: 720V,50 Hz
- Acceptable deviation of the operating current: 1.2 Ñ… In
- Input current: 50-1200А
- Output current: 5А
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°Ð¡
- Humidity: 35-85% RH
- Precision class: 0.5

\n


Mounting: Vertically or horizontally to the power supplying rails according to the opening of the transformer

\n

Standards: EN61010-1; EN60044-1; EN60044-6

Andmeleht

Bränd
ELMARK
Kategooria
E1
Kogu võimsus W
2
Kogu võimsus W
Toote netokaal kg
0.500
Brutokaal kg
0.000
Brutokaal kg
0.400
Brutokaal kg
0.550
Garantii
3+2
Netokaal kg
0.500
Võimsus
2.5VA
Kaal
0.550
