49,60 €

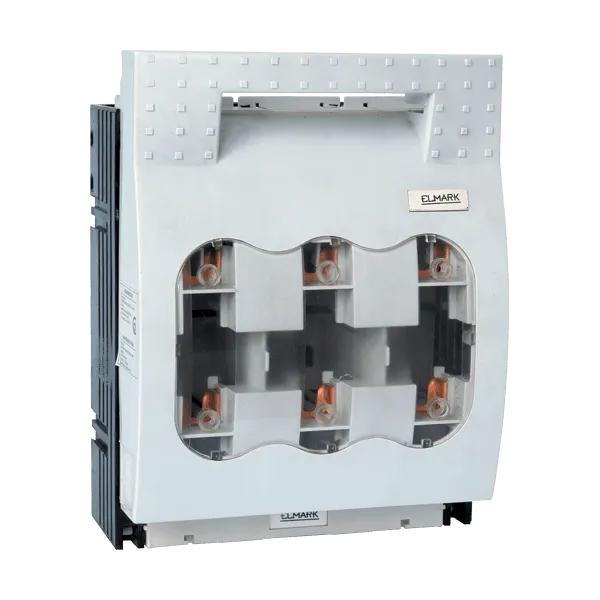

Horisontaalne isoleeritud lüliti NT LINK UP 160A 3P jaoks
Elmark
73,51 €
Maksudega
Technical characteristics:
- Rated voltage: 500V
- Rated short circuit current: according to the mounted fuse links
- Size of the fuse links: NT00 / NT1 / NT2 / NT3
- Number of poles: 3
- Vertical / Horizontal options
- Surge voltage wear resistance: 8kV
- Mechanical wear resistance: 3000 cycles
-...
Technical characteristics:
- Rated voltage: 500V
- Rated short circuit current: according to the mounted fuse links
- Size of the fuse links: NT00 / NT1 / NT2 / NT3
- Number of poles: 3
- Vertical / Horizontal options
- Surge voltage wear resistance: 8kV
- Mechanical wear resistance: 3000 cycles
- IP code: IP 40
- Plastic: UV rais wear resistant
- Ambient temperature: -5° до +65°Ð¡
\n
Mounting:
- To the mounting plate using bolts
- Directly to the power supply rails
\n
Standards: EN60947-1; EN60947-3
Andmeleht
- Bränd
- ELMARK
- Kategooria
- E1
- Toote netokaal kg
- 1.333
- Brutokaal kg
- 1.389
- Garantii
- 3+2
- Netokaal kg
- 1.333
- Kaal
- 1.389
