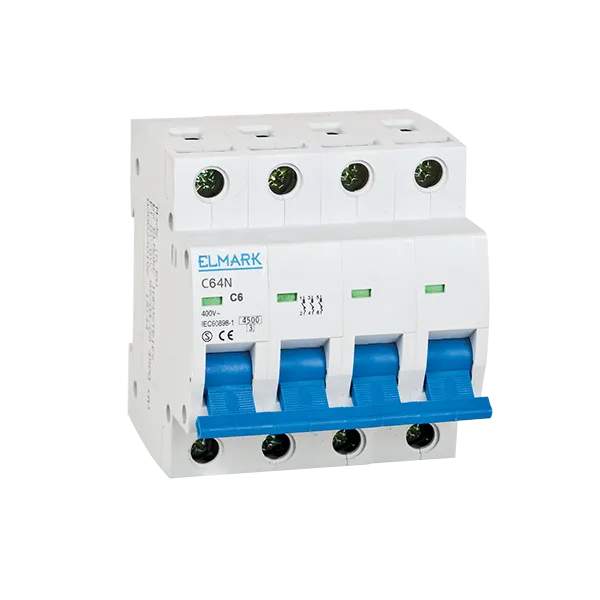

KÄSIRAUDKAITSE LÕHK 64N/2A 4P KÕVER B

Technical characteristics:
- Rated operating voltage: 230/400V; 50/60Hz
- Rated current: 1-63А
- Breaking capacity: 6000 А
- Poles: 1; 2; 3;4
- Tripping curve: B;C
B- the maximum current release breaks between 3 and 5 In; used to protect long circuits and generators

\n

С - the maximum current release breaks between 5 and 10 In; used to protect main power supply cables and conventional consumers

\n

- Electrical wear resistance (number of cycles):≥8000
- Mechanical wear resistance (number of cycles):≥50000
- Limitation class: 3
- IP code: IP>20
- Ambient temperature: -5 to +40°Ð¡±2°Ð¡

\n

Mounting: Vertically on a DIN rail

\n

Standard: EN60898-1
