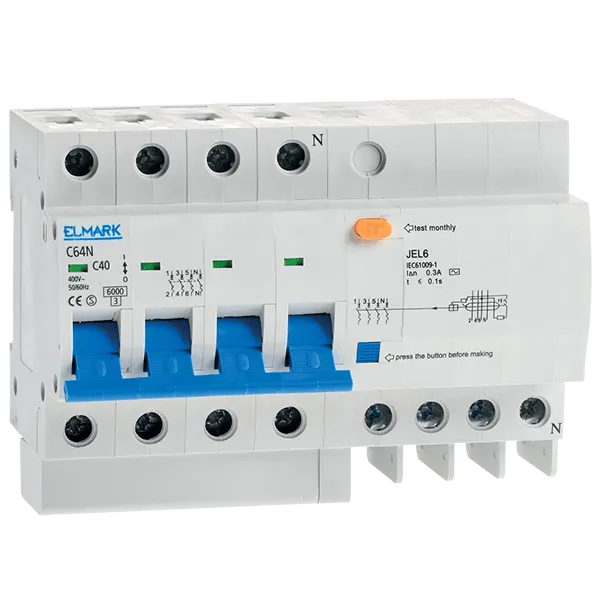

Kombineeritud jääkvoolukaitse JEL6 C50 3P+N 50A/300MA

Description:
- Combined circuit breakers with electronic residual current devices

\n

Technical characteristics:
- Rated operating voltage: 230V/400V,50Hz
- Rated current: 10-50 А
- Responsiveness of the Residual current device: 30/100/300/500mA
- Number of poles: 2 / 3 / 4
- Tripping curve of the circuit breaker: С
- Surge voltage wear resistance: ≥2 000V
- Breaking capacity: 4,5кА
- Activation time:
of the residual current device <0.1s at IΔn and <0.04s at 2 IΔn
of thte circuit breaker: < 0.1s
- Ambient temperature: -10°÷ 65ºÐ¡
- Installation altitude: up to 2000m

\n

Mounting: Vertically on a DIN rail

\n

Standards: EN61009-1; EN61009-2
