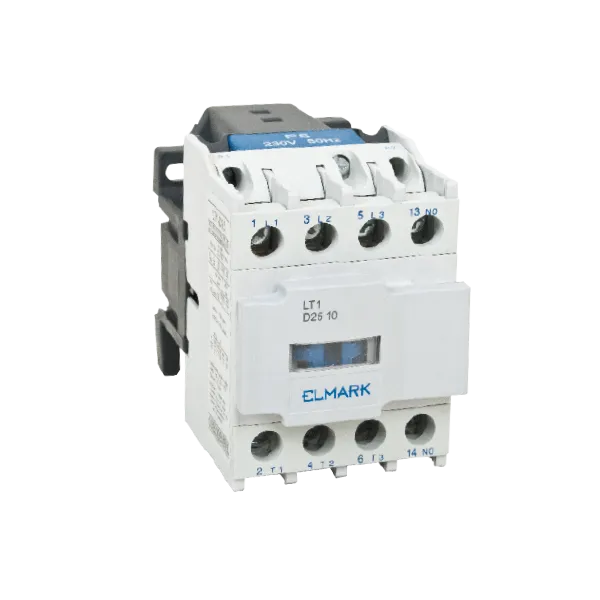

KONTAKTOR LT1-D 12A 24V 1NO
Elmark
26,78 €
Maksudega
Tarne 7-14 päeva
Technical characteristics:
- Operation class: ÐС-3
- Rated current: 6-95Ð
- Rated operating voltage of power contactors: up to 690V; 50/60Hz
- Surge voltage wear resistance: >8000V
- Rated operating voltage of the coil: 12/24/36/48/110/230/400
- Electrical wear resistance (number of cycles):...
Technical characteristics:
- Operation class: ÐС-3
- Rated current: 6-95Ð
- Rated operating voltage of power contactors: up to 690V; 50/60Hz
- Surge voltage wear resistance: >8000V
- Rated operating voltage of the coil: 12/24/36/48/110/230/400
- Electrical wear resistance (number of cycles): ≥1000000
- Mechanical wear resistance (number of cycles):≥10000000
- Number of cycles (switchings ON) per hour:
6-32Ð - 1200cycles
40-95Ð - 600cycles
- Pole leaking power: up to 13W
- Ambient temperature: -10°÷60ºÐ¡
- Maximum altitude: up to 2000m
\n
Mounting: on a DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°
\n
Standards: EN60947-1; EN60947-4-1
Andmeleht
- Bränd
- ELMARK
- Kategooria
- E1
- Toote netokaal kg
- 0.240
- Brutokaal kg
- 0.260
- Garantii
- 5+2
- Netokaal kg
- 0.240
- Kaal
- 0.260
