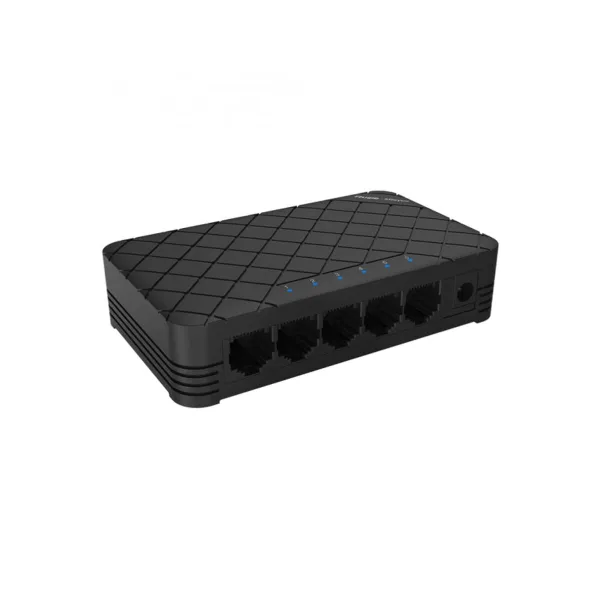

Switch Ruijie RG-ES05

The RG-ES05 switch from Ruijie Networks is an unmanaged switch designed for small businesses, SOHO environments, and small-scale surveillance systems, offering a simple and efficient solution for building fast local networks. It features 5 RJ-45 Fast Ethernet ports (10/100 Mbps) that allow plug-and-play connectivity without configuration, ideal for users needing quick, hassle-free installation. Housed in a durable black plastic case, it has a compact design with small dimensions of 108.1 mm width, 64 mm depth, and 24.8 mm height, perfect for desktop use without taking up space. It operates with a 5 V DC, 0.6 A power supply, with very efficient energy consumption of only 2.5 W, a fanless design ensuring silent operation, and an operating temperature range between 0 and 40 °C. It supports full-duplex and half-duplex modes, flow control, auto-negotiation, and auto MDI/MDI-X function to facilitate interoperability with devices like network cameras, computers, and printers. Additionally, it includes a MAC address table with capacity for 1000 entries, a reset button, and a forwarding rate of up to 0.744 MPPS. Its standards comply with IEEE 802.3, 802.3u, and 802.3x, though it does not support 10G or PoE, positioning it as a practical and economical option for basic networks that do not require ultra-high speeds or power over Ethernet. The operating relative humidity ranges reliably from 10% to 90%, ensuring stability in various environments. This switch is compatible with EU plugs and comes with a user manual and quick start guide to facilitate immediate use in any simple infrastructure. Overall, the RG-ES05 is a compact and functional device that provides a reliable and efficient switching solution for users needing a stable local network without complications or advanced configurations.

• Product with plug: Yes
• Type of plug: Plug EU
• Type:
  • Switch
  • Tablecloth
• Connections:
  • RJ45
  • RJ45 x 5
• Ports: 5
• Power supply:
  • Electric Network
  • DC
• Speed: 1 Gbps
• Colour: Black
• Material: Plastic
• Voltage: 5 V
• Working range for humidity: 10 % - 90 %
• Energy consumption: 2.5 kWh
• Approx. temperature: -40º / 70º
• Amperage: 0,6 A
