New AC/DC voltage tester UNI-T UT22B-EU

AC/DC voltage tester UNI-T UT22B-EU

Uni-T
€0.00 Tax included
Reference
6935750522035
Last items in stock (1 Item)

Free shipping

In Estonia from 75 € of purchases

Secure payment

100% secure online payment

Easy returns

Returns possible for 14 days

Customer service

24/7 WhatsApp

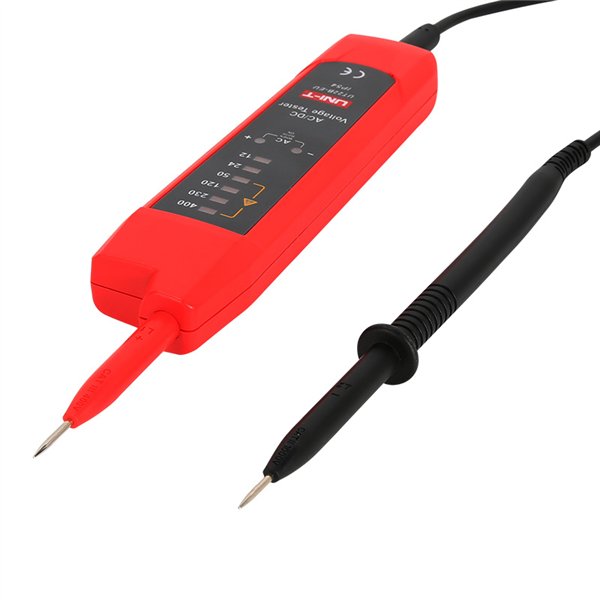

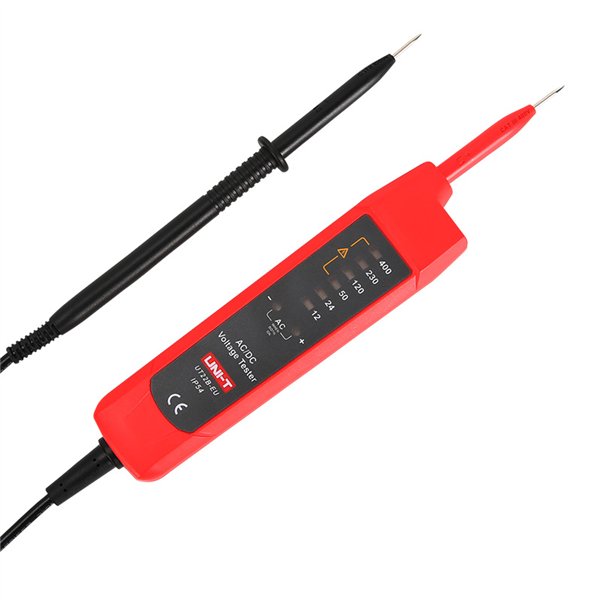

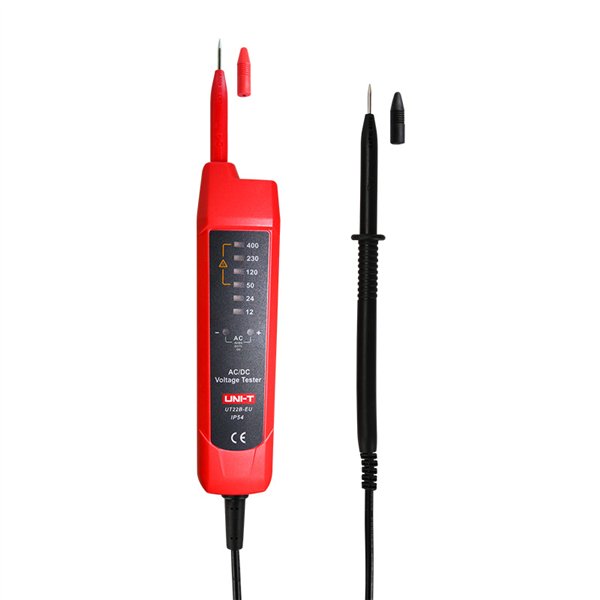

UNI-T UT22B-EU AC/DC voltage tester

The UNI-T UT22B-EU voltage tester is a reliable tool created for both electricians and do-it-yourselfers who want simplicity of operation and high precision. The device allows automatic detection of AC/DC voltage and indicates the polarity of DC voltage (+/-), as well as warns of dangerous voltage above 50 V. The UT22B-EU is distinguished by its IP54 rating, resistance to drops from heights of up to 2 meters, and requires no batteries or rechargeable battery - it is powered directly by the measured voltage. The product meets stringent CE and UKCA standards, guaranteeing safe and reliable operation.

Automatic voltage detection and user protection

Thanks to the automatic AC and DC voltage detection function, working with the UNI-T UT22B-EU tester becomes faster and safer. Built-in LEDs indicate both the presence of voltage and its polarity in the case of DC, allowing for easy and intuitive readings. In addition, the tester is equipped with a special indicator that warns of dangerous voltages exceeding 50 volts, significantly increasing your protection when taking measurements.

Rugged design and trouble-free operation

The UT22B-EU is designed to operate in harsh environments - the IP54 protection rating protects the device from dust and splashing, and the rugged housing protects it from mechanical damage, even when dropped from a height of 2 meters. No need for batteries or a rechargeable battery eliminates the risk of interruptions, and built-in input protection ensures long equipment life. The UNI-T UT22B-EU voltage tester is an excellent choice for anyone who values reliability, safety and convenience.





ManufacturerUNI-T
ModelUT22B-EU
Frequency (AC)50/60 Hz
Voltage indicationLED
Automatic AC/DC detectionYes
Input protectionYes
Drop test2 m
Protection classIP54
Power supplyNone - power supply from an external source (measured voltage)
ColorRed and gray
Weight150 g
Dimensions116 mm × 33 mm × 22 mm
Voltage indication range (V AC/DC)12V: 6V ~ 12V; 24V: 17V ~ 24V; 50V: 35V ~ 50V; 120V: 84V ~ 120V; 230V: 161V ~ 230V; 400V: 280V ~ 400V
