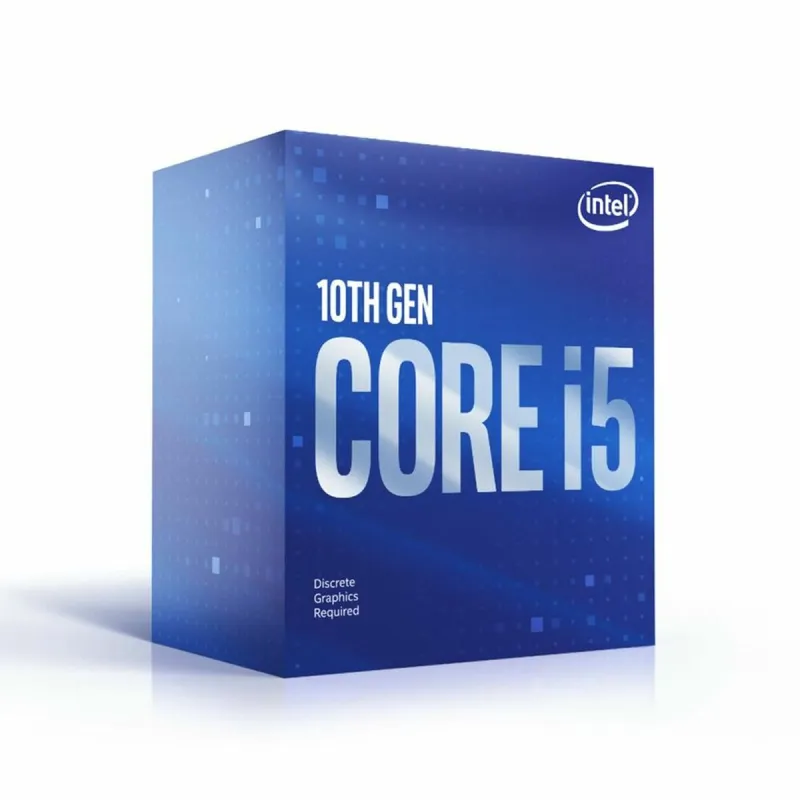

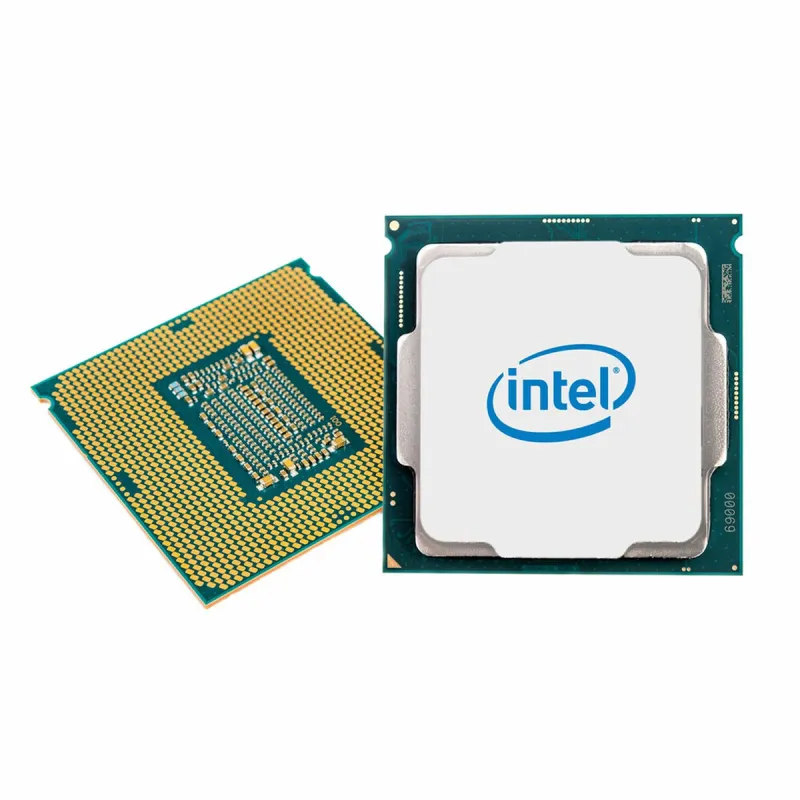

Processor Intel BX8070110400F 4,3 GHZ 12 MB LGA 1200

The Intel Core i5-10400F processor (model BX8070110400F) is a key component for desktop systems that require a balance between power and efficiency. This processor belongs to the Intel Core i5 family, features a total of 6 physical cores, and uses 64-bit architecture, enabling suitable multithreaded performance for advanced tasks such as video editing, gaming, or demanding multitasking applications. Its maximum frequency can reach up to 4.3 GHz, providing high responsiveness when more power is needed. It is designed for motherboards with an LGA1200 socket, compatible with Intel 400 series chipsets, ensuring optimal integration and support for current technologies. Its 12 MB cache helps improve data processing efficiency by reducing latency for frequently accessed information. This model does not include an integrated graphics chip, so a dedicated graphics card is required for any video output, a feature often preferred by users prioritizing systems with specific GPUs for gaming or workstations. It consumes a maximum of 65 W of power, balancing good performance with moderate energy consumption typical of processors in its range. Compatible with DDR4 RAM, it supports modern modules that enhance overall system speed and responsiveness. The boxed version guarantees a new and original Intel product, ideal for upgrades or balanced PC builds seeking solid performance without entering premium tiers. In short, the Intel Core i5-10400F is a reliable and efficient choice for users needing a powerful and versatile processor, optimized for modern applications requiring high computing capacity and consistent with Intel’s 10th generation platform.

• Type: DDR4
• Socket:
  • LGA1200
  • LGA 1200
• Nuclei: 6 Nuclei
• Speed:
  • 2.9 GHz
  • 4.30 GHz
  • 4,3 ghz
  • 4.3 Ghz
• Processor Family:
  • Intel Core i5
  • Intel
• Requirements: 64 bits
• Compatible:
  • DDR4-SDRAM
  • Intel® Turbo Boost Technology 2.0
  • Intel Optane
  • PC
• Processor:
  • Intel Core i5-10400
  • 5X86
• Packaging: Box
• Cache: 12 MB
• Power: 65 W
• Recommended use: Gaming
• Maximum memory card size: 128 GB
• RAM Memory: 128 GB
• Version: 3.0
• Technology:
  • VT-d
  • VT-x
• Not included: Discrete graphics adaptor
• Connections: PCI Express 1x16,2x8,1x8+2x4

Intel® Optane™ Memory SupportedIntel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.Intel® Turbo Boost TechnologyIntel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.Intel® Hyper-Threading TechnologyIntel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.Intel® Virtualization Technology (VT-x)Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.Intel® Virtualization Technology for Directed I/O (VT-d)Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.Intel® VT-x with Extended Page Tables (EPT)Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.Intel® 64Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.Instruction SetAn instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel’s instruction set this processor is compatible with.Instruction Set ExtensionsInstruction Set Extensions are additional instructions which can increase performance when the same operations are performed on multiple data objects. These can include SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions).Idle StatesIdle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.Enhanced Intel SpeedStep® TechnologyEnhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.Thermal Monitoring TechnologiesThermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.Intel® Identity Protection TechnologyIntel® Identity Protection Technology is a built-in security token technology that helps provide a simple, tamper-resistant method for protecting access to your online customer and business data from threats and fraud. Intel® IPT provides a hardware-based proof of a unique user’s PC to websites, financial institutions, and network services providing verification that it is not malware attempting to login. Intel® IPT can be a key component in two-factor authentication solutions to protect your information at websites and business log-ins.

• Processor family: 10th gen Intel® Core™ i5
• Processor cores: 6
• Processor socket: LGA 1200 (Socket H5)
• Component for: PC
• Processor lithography: 14 nm
• Box: Y
• Cooler included: Y
• Processor manufacturer: Intel
• Processor base frequency: 2.9 GHz
• Processor model: i5-10400F
• Processor operating modes: 64-bit
• Processor threads: 12
• System bus rate: 8 GT/s
• Processor cache: 12 MB
• Processor cache type: Smart Cache
• Thermal Design Power (TDP): 65 W
• Processor boost frequency: 4.3 GHz
• Memory bandwidth supported by processor (max): 41.6 GB/s
• Processor codename: Comet Lake
• Processor ARK ID: 199278
• Memory channels: Dual-channel
• Maximum internal memory supported by processor: 128 GB
• Memory types supported by processor: DDR4-SDRAM
• Memory clock speeds supported by processor: 2666 MHz
• ECC: N
• On-board graphics adapter: N
• Discrete graphics adapter: N
• On-board graphics adapter model: Not available
• Discrete graphics adapter model: Not available
• Execute Disable Bit: Y
• Idle States: Y
• Thermal Monitoring Technologies: Y
• Maximum number of PCI Express lanes: 16
• PCI Express slots version: 3.0
• PCI Express configurations: 1x16,2x8,1x8+2x4
• Supported instruction sets: SSE4.1,SSE4.2,AVX 2.0
• Scalability: 1S
• CPU configuration (max): 1
• Embedded options available: N
• Thermal solution specification: PCG 2015C
• PCI Express CEM revision: 3.0
• Market segment: Desktop
• Harmonized System (HS) code: 8542310001
• Export Control Classification Number (ECCN): 5A992C
• Commodity Classification Automated Tracking System (CCATS): G077159
• Intel® Hyper Threading Technology (Intel® HT Technology): Y
• Intel® Identity Protection Technology (Intel® IPT): Y
• Intel® Turbo Boost Technology: 2.0
• Intel® AES New Instructions (Intel® AES-NI): Y
• Enhanced Intel SpeedStep Technology: Y
• Intel Trusted Execution Technology: N
• Intel® Thermal Velocity Boost: N
• Intel® Turbo Boost Technology 2.0 frequency: 4.3 GHz
• Intel® Transactional Synchronization Extensions: N
• Intel VT-x with Extended Page Tables (EPT): Y
• Intel® Secure Key: Y
• Intel Stable Image Platform Program (SIPP): N
• Intel® OS Guard: Y
• Intel Software Guard Extensions (Intel SGX): Y
• Intel 64: Y
• Intel Virtualization Technology (VT-x): Y
• Intel Virtualization Technology for Directed I/O (VT-d): Y
• Intel Turbo Boost Max Technology 3.0: N
• Intel® Optane™ Memory Ready: Y
• Intel® Boot Guard: Y
• Intel® vPro™ Platform Eligibility: N
• Tjunction: 100 °C
• Product type: Processor
• Supported memory types: DDR4-SDRAM
• Package type: Retail box
• Processor package size: 37.5 x 37.5 mm
• Maximum internal memory: 128 GB
• Generation: 10th Generation
• Target market: Gaming
• Launch date: Q2'20
• Status: Launched
• Maximum memory: 128 GB
• Bus speed: 8 GT/s
