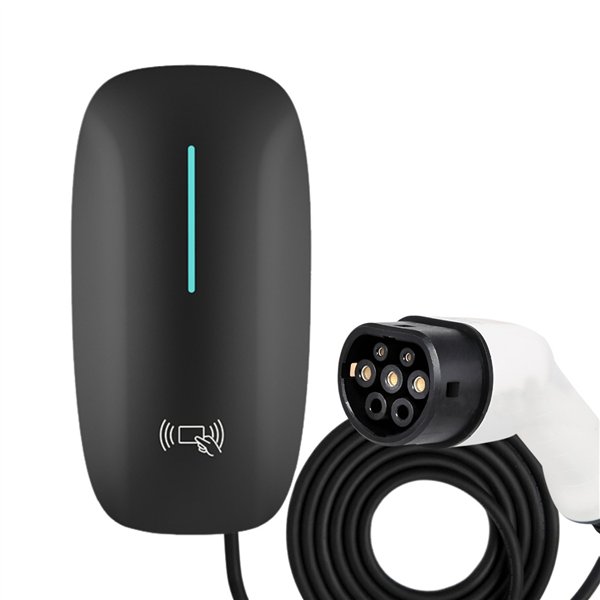

EV charging station Reach EVCS22A Type2 32A 22kW 5.0m

Specification:
Connector type: Type 2
Charging current: 16 A
Maximum charging power: 22 kW
Cable length: 5 m
Operating voltage: AC 400 V
Unit size: 360 x 194 x 104 mm
Protection class: IP54
Operating temperature: -25°C ~ +45°C
Operating humidity: 5% ~ 95% RH
Warranty: 24 months

Protection against: overheating, overvoltage, overload, voltage fluctuations, short circuit, surges, leakage; grounding.

Set includes: charging station, charging cable with Type 2 connector, wall mount bracket with mounting screws.
Important: The set does not include the power cable for connecting the charging station to the electrical network and RFID (IC) cards.

RFID Card Function
The RFID functionality of this EV charging station allows for convenient and secure initiation and management of charging sessions. The card serves as an authentication key, ensuring that only authorized users can start and stop charging. This is especially useful and safe in public or semi-public areas, allowing effective monitoring and control of the charging process.
