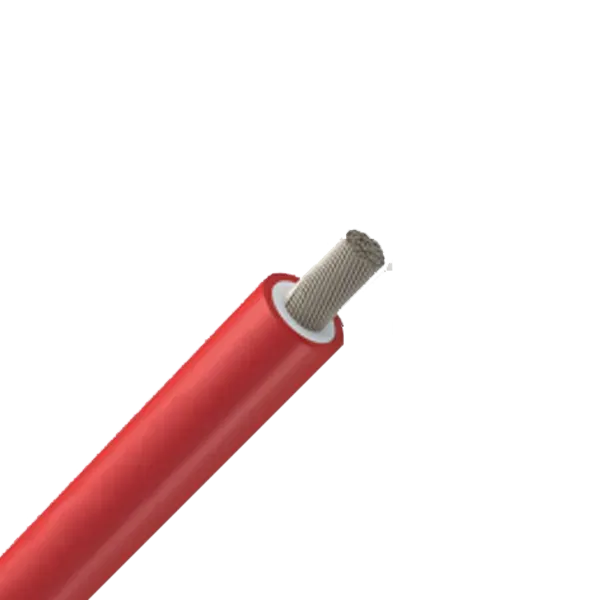

SOLAR CABLE H1Z2Z2-K 0.6/1KV 1X6.00MM2 RED

 H1Z2Z2-K cable is suitable for both fixed and mobile solar installations (solar farms, rooftop solar installations and floating plants). It is a highly flexible cable compatible with all major connectors and specially de- signed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations.

TECHNICAL CHARACTERISTICS:

• Operating voltage: AC- 1.0KV; DC- 1.5KV

• Max. operating voltage: AC- 1.2KV; DC- 1.8KV

• Test volatge: AC- 6.5KV for 5 min; DC- 15KV for 5 min

• Ambient work temperature: from -40 to + 90 °C

• Max. short circuit temperature: +250 ° C for 5s

• Maximum pulling stress: 15 N/mm2 in operation, 50N/mm2 during installation.

TECHNICAL DATA:

• Conductor: Tinned copper multi-wires class 5

• Insulation: LSZH reticulated elastomeric compound

with neutral colour

• Outer sheath: LSZH reticulated elastomeric

compound

• UV resistant

• Colour: Black and red

• Reaction to fire - Performance: EN 50575:2016 Eca
