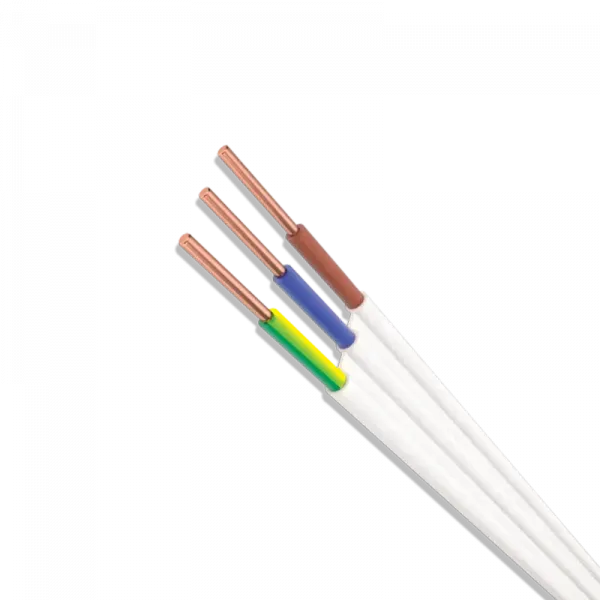

FLAT INSTALLATION CONDUCTOR 3X1MM² 0.22/0.38kV

For fixed installation in and above plaster in lighting or power networks.

Technical characteristics:
- Manufactured according to DIN VDE 0250, part 201
- Rated voltage: U0/U - 220/380V
- Test voltage: 2000V
- Maximum conductor temperature: +70°C
- Maximum conductor temperature at short circuit for 5 sec: +160°C
- Ambient temperature: -30°C to +50°C
- Minimum temperature during unstallation: -5°C
- Minimum bending radius during installation:
   - For diameters up to 10mm - 10D
   - For diameters over 10mm - 15D
- D - cable height
- Flame test: flame retardant BDS IEC 332-1
- Sheath colour: white, gray or black

Construction:
- Copper conductors
- Flexibility class 1 according to DIN VDE 0295 (HD 383)
- Insulation: PVC
- Sheath: PVC
- Parallelly laid wires - flat with bridge

Core identification:
- Two-wire: black, blue
- Three-core: black, blue, brown or yellow-green, black, blue
