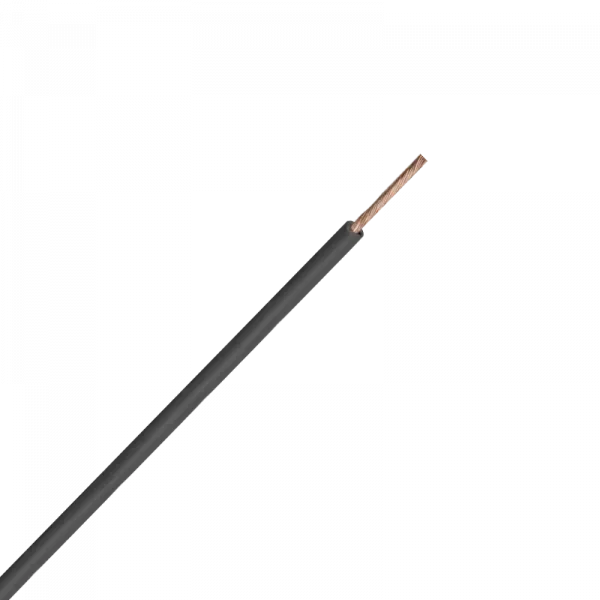

CONDUCTOR H05V-K 1X1mm² 0.3/0.5kV

For wiring with small bending radii and higher requirements to the cable
flexibility, in machines, distributor boards and devices.

Technical characteristics:
- Manufactured according to BDS 4305-90
- Rated voltage:
   - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V
   - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V
- Test voltage:
   - Cross-section from 0.20mm² to 1.00mm²: 2000V
   - Cross-section from 1.50mm² to 120mm²: 2500V
- Insulation resistance at 70°C: min. 2x10¹° Ω.cm
- Maximum conductor temperature: +70°C
- Maximum conductor temperature at short circuit for 5 sec: +160°C
- Ambient temperature:
   - Flexing installation: -5°C to +50°C
   - Static installation: -30°C to +50°C
- Minimum temperature during unstallation: -5°C
- Minimum bending radius during installation:
   - For diameters up to 10mm - 10D
   - For diameters over 10mm - 15D
- D - cable height
- Flame test: flame retardant BDS IEC 332-1

Construction:
- Copper conductors
- Flexibility class:
   - Cross-section up to 50mm² - class 5 according to BDS 904-84
   - Cross-section over 50mm² - class 4 according to BDS 904-84
- Insulation: PVC

Insulation colour:
- white, gray, black, blue, brown, red, yellow-green, green, yellow
