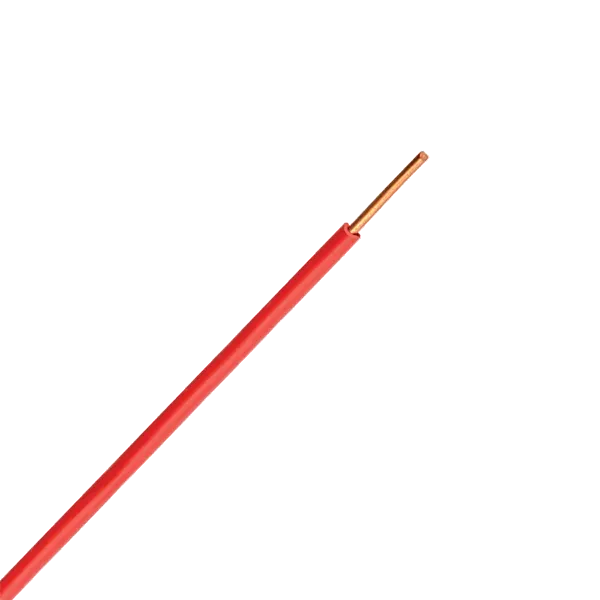

CONDUCTOR H05V-U 1X0.5mm² 0.45/0.75kV

For fixed installation in lighting networks, power and signal systems,
wiring in distribution boards, machines and devices.

Technical characteristics:
- Manufactured according to DIN VDE 0281, part 3
- Rated voltage:
   - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V
   - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V
- Test voltage:
   - H05V-U from 0.50mm² to 1.00mm²: 2000V
   - H07V-U from 1.50mm² to 10mm²: 2500V
- Maximum conductor temperature: +70°C
- Maximum conductor temperature at short circuit for 5 sec: +160°C
- Ambient temperature: -30°C to +50°C
- Minimum temperature during unstallation: -5°C
- Minimum bending radius during installation:
   - For diameters up to 10mm - 10D
   - For diameters over 10mm - 15D
- D - cable height
- Flame test: flame retardant BDS IEC 332-1

Construction:
- Copper conductors
- Flexibility class 1 according to DIN VDE 0295 (HD 383)
- Insulation: PVC

Insulation colour:
- white, gray, black, blue, brown, red, yellow-green
