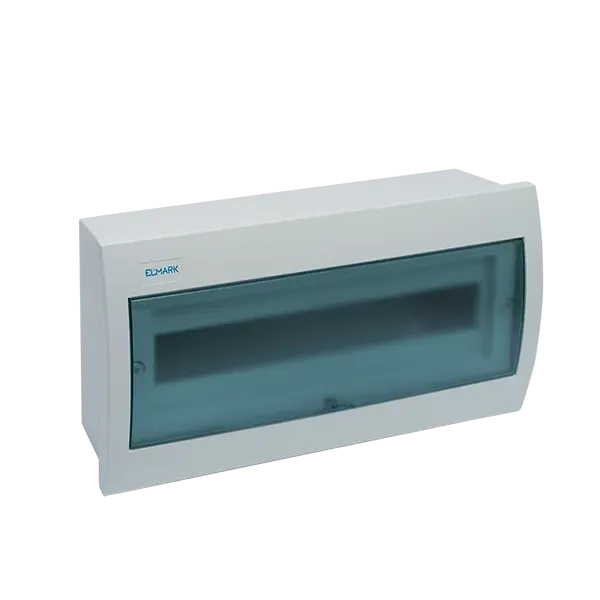

PLASTIC BOX FOR SURFACE MOUNTING 12 WAY - BLUE DOOR

Technical characteristics:
- Door colour: Transparent blue
- Number of modules: 12/18/24/28/36
- Fire resistance: 650ºÐ¡/30s
- IP code: IP40
- Row:
  = Single row for 12 and 18 modules
  = Double rows for 24, 28and 36 modules
- Material: ABS for body and PC for door
- Ambient temperature: -5º to 65ºÐ¡, max. 95% hamidity
- Colour: White RAL 9003
- Storage temperature: -40º to 75ºÐ¡

Advantages:
- They are made of white self-extinguishing plastic, resistant to fire and high temperatures with IP30
- The mounted in the box device is protected from direct contact with current conductive parts
- Offered with DIN rail for device mounting and terminal blocks for joining of the neutral and the grounding conductor

Applications:
- Newly built buildings or buildings in reconstruction

Mounting: Surface mounting

Standards: EN62208; EN60439-1; EN60439-3
